01 - Cover Sheet

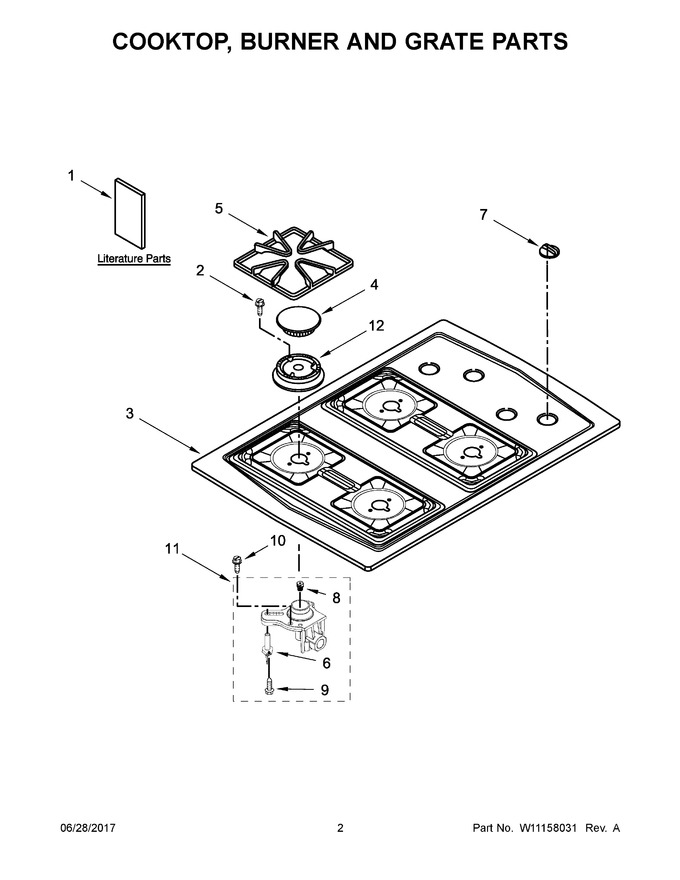

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switches
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10723615 | Instructions, Installation |
|
- | |||||
| 2 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 3 | W11230936 | Cooktop (stainless) (Replaces: W10140177) |
|
$ 377.15 | |||||
| 4 | WPW10218223 | Cap, Burner (kit Of 4) (black) (Replaces: W10218223) |
|
$ 65.85 | |||||
| 5 | WPW10268483 | Assembly, Grate (kit Of 4) (black) (Replaces: W10268483) |
|
$ 120.02 | |||||
| 6 | W11134296 | Electrode (left Front & Left Rear) (Replaces: W10779132) |
|
$ 54.81 | |||||
| 7 | W10696074 | Knob, Control (black) |
|
- | |||||
| 8 | WP9753929 | Orifice (left Front) (Replaces: 9753929) |
|
$ 72.63 | |||||
| 9 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 10 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 11 | W11134301 | Assembly, Orifice Holder (10.5k) (left Front) (Replaces: W10779154) |
|
- | |||||
| 12 | WPW10406797 | Head, Burner (12.5k) (left Front, Left Rear,right Rear) (Replaces: W10406797) |
|
$ 79.64 | |||||
| 11A | W11134302 | Assembly, Orifice Holder (9.1k) (left Rear) (Replaces: W10779155) |
|
- | |||||
| 11B | W11134303 | Assembly, Orifice Holder (5k) (right Front) (Replaces: W10779156) |
|
- | |||||
| 11C | W11134304 | Assembly, Orifice Holder (9.1k) (right Rear) (Replaces: W10863942) |
|
- | |||||
| 12A | WPW10406243 | Head, Burner (6k) (right Front) (Replaces: W10406243) |
|
Immediately | $ 33.50 | ||||
| 1A | 8304571 | Instructions, Undercounter |
|
- | |||||
| 1B | 8286620 | Instructions, Lp Conversion |
|
- | |||||
| 1C | W10254048 | Guide, Use And Care |
|
- | |||||
| 6A | W11134295 | Electrode (right Front & Right Rear) (Replaces: W10779131) |
|
$ 54.81 | |||||
| 8A | WP3192523 | Orifice (left Rear & Right Rear) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 8B | 8286473 | Orifice (right Front) |
|
$ 73.44 | |||||
| NI | WP8286320 | Kit, Spud (Replaces: 8286320) |
|
$ 115.78 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 4173634 | Bushing (Replaces: FE02349) |
|
$ 5.83 |
