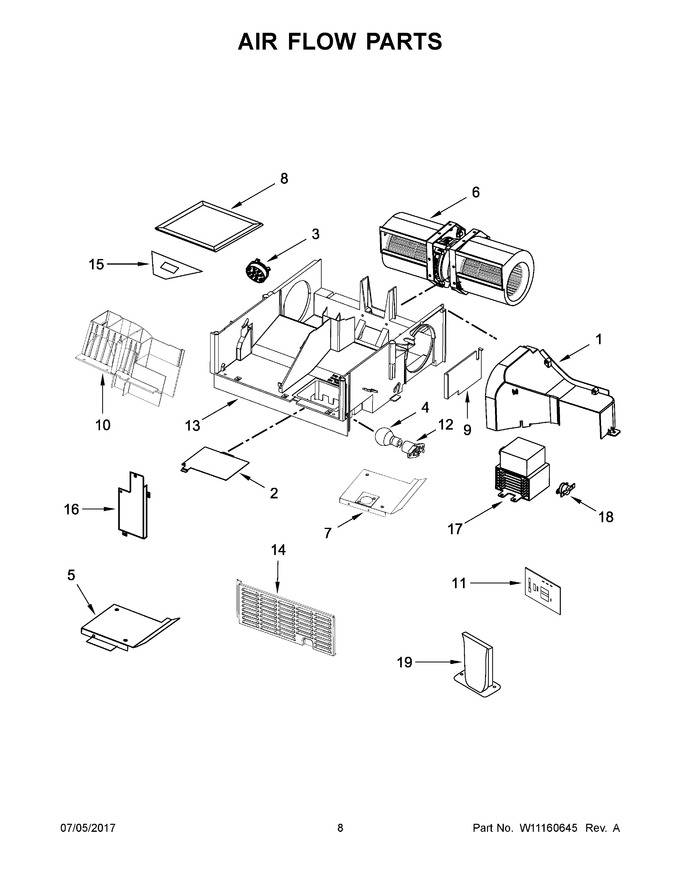

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | 8206626 | Sensor, Humidity |
|
$ 84.84 | |||||
| 4 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 5 | W10138797 | Guide, Air |
|
$ 81.60 | |||||
| 6 | W11441128 | Motor, Hood Fan (Replaces: W10836180) |
|
Immediately | $ 190.49 | ||||
| 7 | W10247762 | Air Guide |
|
- | |||||
| 8 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 9 | W11293488 | Cover, Right Duct (Replaces: W10700156) |
|
$ 72.07 | |||||
| 10 | WPW10448768 | Air Guide, Sealing Plate (Replaces: W10448768) |
|
$ 15.04 | |||||
| 11 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 12 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 13 | W10771886 | Plate, Air Guide Base |
|
- | |||||
| 14 | W10342991 | Shield, Finger |
|
$ 145.57 | |||||
| 15 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 16 | W10247764 | Cover, Cavity Air Guide Inlet |
|
- | |||||
| 17 | WPW10693025 | Magnetron (Replaces: W10693025) |
|
Immediately | $ 166.55 | ||||
| 18 | W10491433 | Thermostat, Magnetron |
|
$ 78.44 | |||||
| 19 | W11381953 | Seal, Waterproof (Replaces: W10269467) |
|
- |
