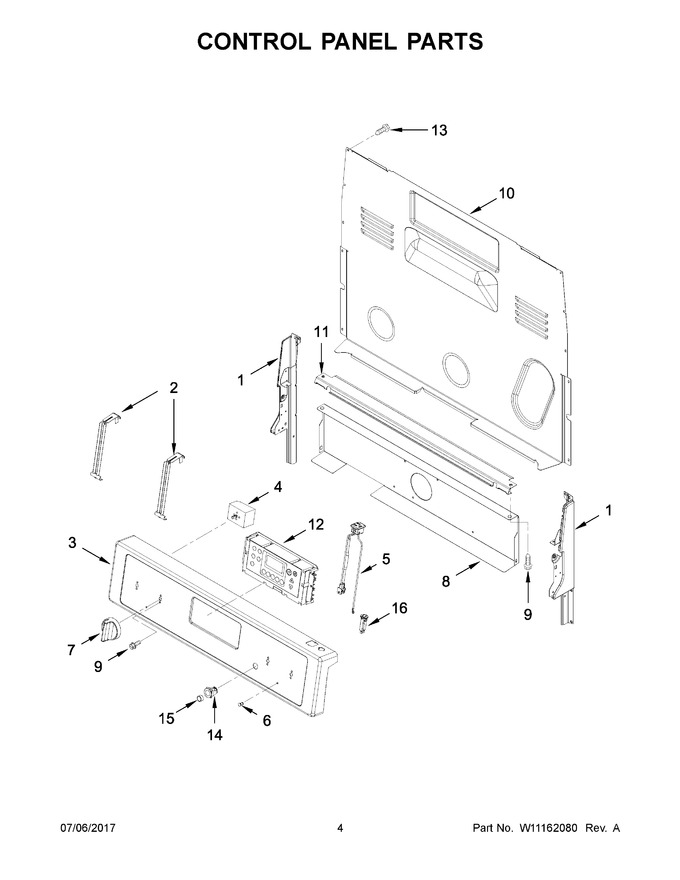

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 2 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 72.69 | ||||
| 3 | W10339407 | Console (stainless) |
|
$ 354.47 | |||||
| 4 | W10857622 | Switch, Infinite (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 190.52 | ||||
| 5 | W10849725 | Receptacle (white) (Replaces: W10488077) |
|
Immediately | $ 72.71 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10854249 | Knob (stainless) (Replaces: W10676227) |
|
Immediately | $ 20.30 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 12 | WPW10586737 | Control, Electric (stainless) (Replaces: W10586737) |
|
$ 449.80 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 14 | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 15 | W10918209 | Button, Keep Warm (grey) (Replaces: W10315961) |
|
$ 17.33 | |||||
| 16 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 4A | W10911303 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 | ||||
| 5A | W10861164 | Receptacle (black) (Replaces: W10749729) |
|
Immediately | $ 16.62 |
