SELECT A DIAGRAM

01 - Cabinet


02 - Control Compartment


03 - Control Panel


04 - Door Latch


05 - Oven Components


06 - Oven Door


07 - Trim

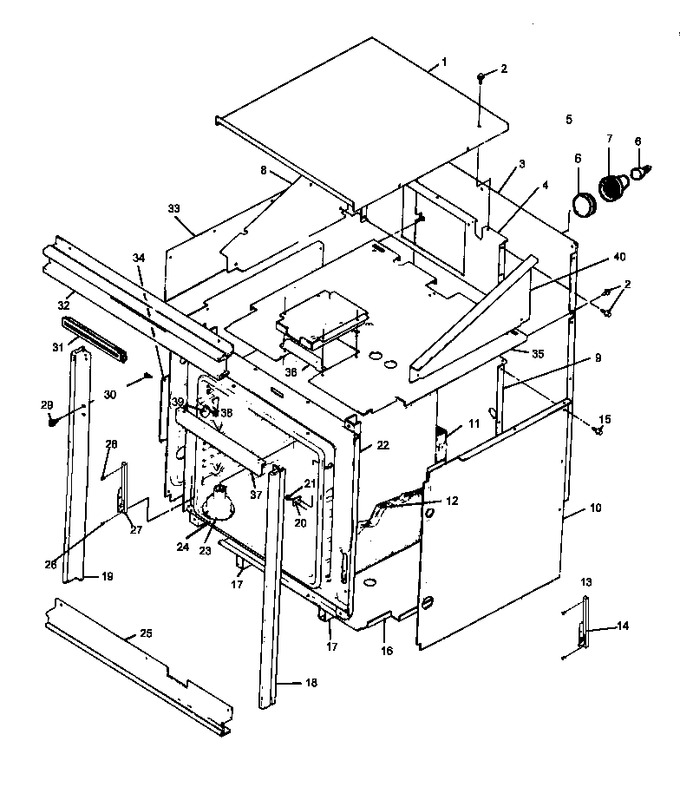

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0040286		Cabinet Top Pyro W.o. Mm		Appelez-nous	-
2	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
3	Y0059744		Cabinet Back, Upper		Appelez-nous	-
4	Y0315557		Back, Control Compartment		Appelez-nous	-
5	Y00000000		See Note Not Used		Appelez-nous	-
6	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
7	Y0042175		Bulb, Light		Appelez-nous	-
8	Y0314835		Compartment, Control Lt		Appelez-nous	-
9	0305420		Retainer, Insulation-rear		Appelez-nous	-
10	Y0316868		Retainer, Insulation-side		Appelez-nous	-
11	Y0041113		Sub 41966, Insulation		Appelez-nous	-
12	Y0041976		Sub 41966, Insulation		Appelez-nous	-
14	Y0315425		Assy, Oven Hinge Rt		Appelez-nous	-
15	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
16	Y0316867		Oven Bottom-lower		Appelez-nous	-
17	Y0041019		Runner, Base-pyro W/o		Appelez-nous	-
18	308488B		Trim, Side Right		Appelez-nous	-
19	308487B		Trim, Side Left		Appelez-nous	-
20	Y0063351		Capillary Hole Cover		Appelez-nous	-
21	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
22	Y00000000		See Note Main Front -- (not Field Serviceable)		Appelez-nous	-
23	Y0058526		Smoke Eliminator		Appelez-nous	-
24	314314CG		Weld, Oven Shell		Appelez-nous	-
25	307720B		Trim, Bottom (blk)		Appelez-nous	-
26	WP4159193		Screw, No.10-32x 5/16 Pan Ph H   (Replaces: Y0317065)				$ 4.29
27	Y0315426		Assy, Oven Hinge Lt				$ 50.99
28	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y0317066)			Immediately	$ 6.85
29	31750319		Screw, No.6-32 X .375 Fh (blk)		Appelez-nous	-
30	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
31	Y0042015		Latch Handle Guide Pyro		Appelez-nous	-
32	308160B		Trim, Control Panel-bot (blk)		Appelez-nous	-
33	0052855		Side, Upper Cabinet		Appelez-nous	-
34	Y0315145		Panel, Side (single)		Appelez-nous	-
35	Y0052848		Upper Oven Top		Appelez-nous	-
36	Y0040903		Latch Mtg. Brkt Pyro W/o		Appelez-nous	-
37	40850CG		Shield, Reflector (cg)		Appelez-nous	-
38	WP90767		Screw, Sm   (Replaces: Y0041816)			Immediately	$ 7.04
39	Y0040848		Probe Recept. Cover Stainless		Appelez-nous	-
40	Y0314834		Compartment, Control Rt		Appelez-nous	-
NI	Y0042409		Smoke Eliminator Vent Tube		Appelez-nous	-
NI	Y0052947		Assy, Conduit		Appelez-nous	-
NI	0040405		Chip Cover Pyro Wo		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
