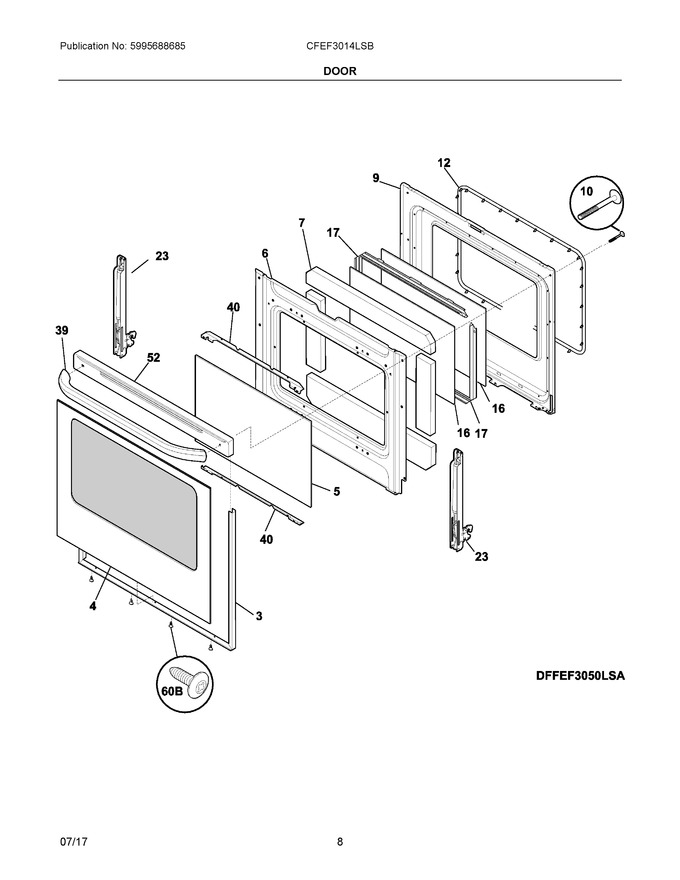

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 58.12
4	316453030		Glass Assembly, Oven Door, W/tape, Outer				$ 518.72
5	316502601		Glass, Door, Airwash   (Replaces: 316502600)			Immediately	$ 207.85
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 147.12
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
12	316405000		Seal, Oven Door			Immediately	$ 179.17
16	5304503232		Glass, Oven Door, Inner   (Replaces: 316117503)				$ 116.95
17	5304504811		Spacer, Glass			Immediately	$ 25.02
23	316575911		Hinge, Oven Door, Brown				$ 103.14
39	5304509553		Handle, Door, Stainless		Appelez-nous	-
40	316530403		Bracket-airwash Glass Wash				$ 33.18
52	316575501		Cap, Door Trim, Black				$ 110.73
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
