SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

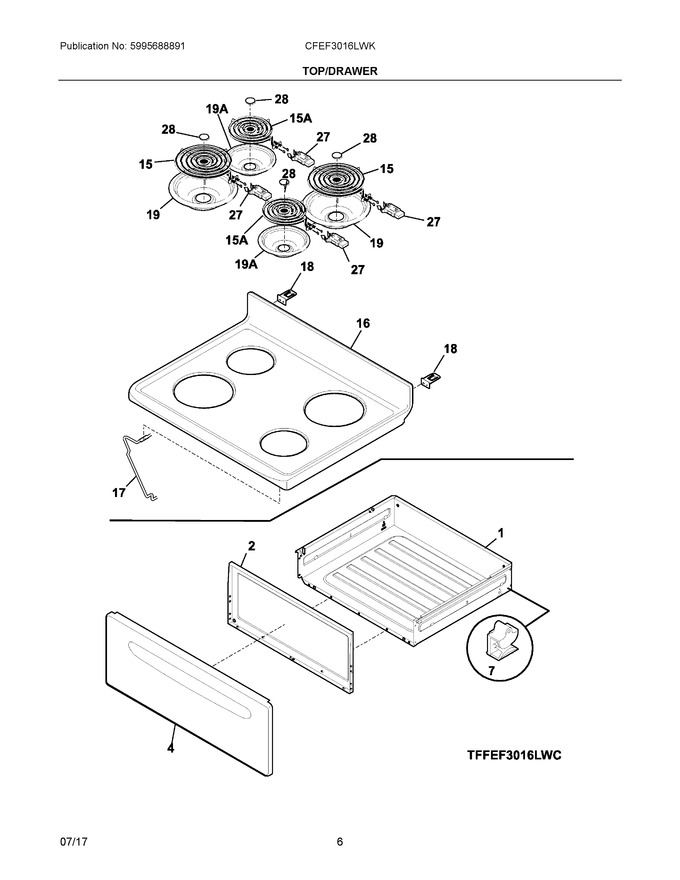

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	316403519		Panel, Drawer Front, White				$ 72.45
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	316442301		Element, Surface, 8", Large   (Replaces: 318372214)			Immediately	$ 44.39
16	316202388		Main Top, White				$ 407.24
17	316057601		Rod, Support, Main Top				$ 64.49
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
19	A316222301		Pan-surface Element, Large, Black, (2)   (Replaces: 318067075)			Immediately	$ 12.53
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion, 1 1/2"dia, Black, Surface Element				$ 64.46
15A	318372211		Element, Surface, 6", Small			Immediately	$ 45.14
19A	A316222201		Pan-surface Element, Small, Black, (2)   (Replaces: 318067076)			Immediately	$ 14.64
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316580400		Harness, Wiring, Surface Units				$ 184.37
NI	316045000		Clip, Wiring Harness, Green, Main Top		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
