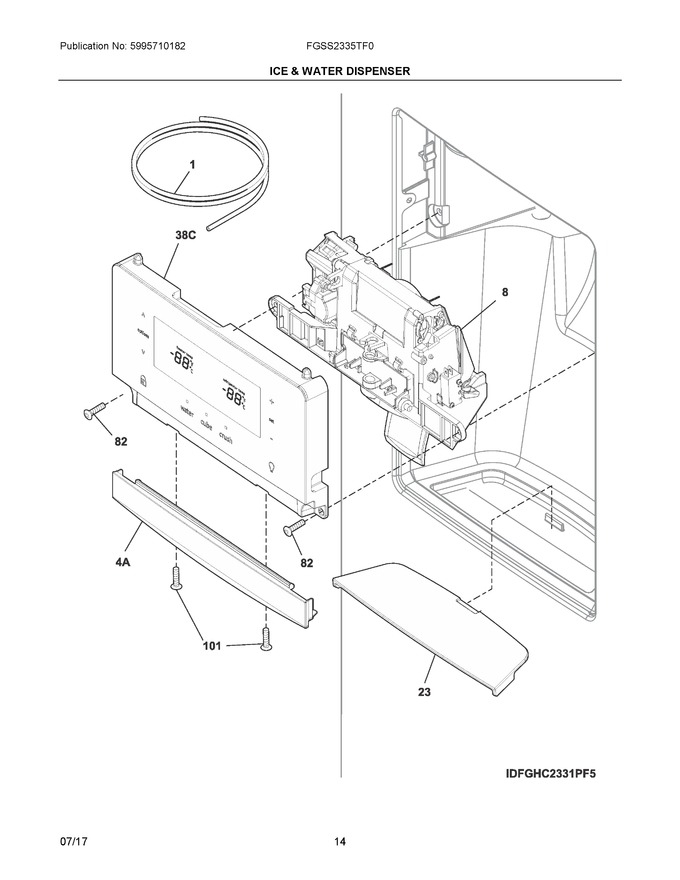

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976438		Tube, Water, 62", Natural, Door			Immediately	$ 20.56
8	242270107		Module, Dispenser, Clear, W/paddle   (Replaces: 242270101)				$ 209.30
23	242176503		Sump, Dispenser, Grey				$ 114.11
82	240363403		Screw, 8-18 X 0.500, 2		Appelez-nous	-
101	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
38C	5304512772		Control Assembly, User Interface, W/housing				$ 304.87
4A	242194301		Trim, Facade, Stainless				$ 103.29
NI	5304521766		Harness, Wiring, Door   (Replaces: 807487901)				$ 44.75
NI	5303918596		Dispenser Heater Kit, 115, Single Paddle   (Replaces: 5303918371)				$ 317.38
NIA	218976439		Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door				$ 19.13
NIB	241850615		Tube-water Inlet, Inlet Valve, To I/m Inlet   (Replaces: 218976915)				$ 34.73
NIC	240561701		Seal-water Inlet, Inlet Valve, To Ice Maker   (Replaces: 240561703)			Immediately	$ 20.56
NICA	241953902		Screw, Quad Hilo, #8-18 X 0.25   (Replaces: 241953907)			Immediately	$ 17.11
NID	242220206		Tube-water Inlet, .315 - 97.50", Brown/tan				$ 46.78
