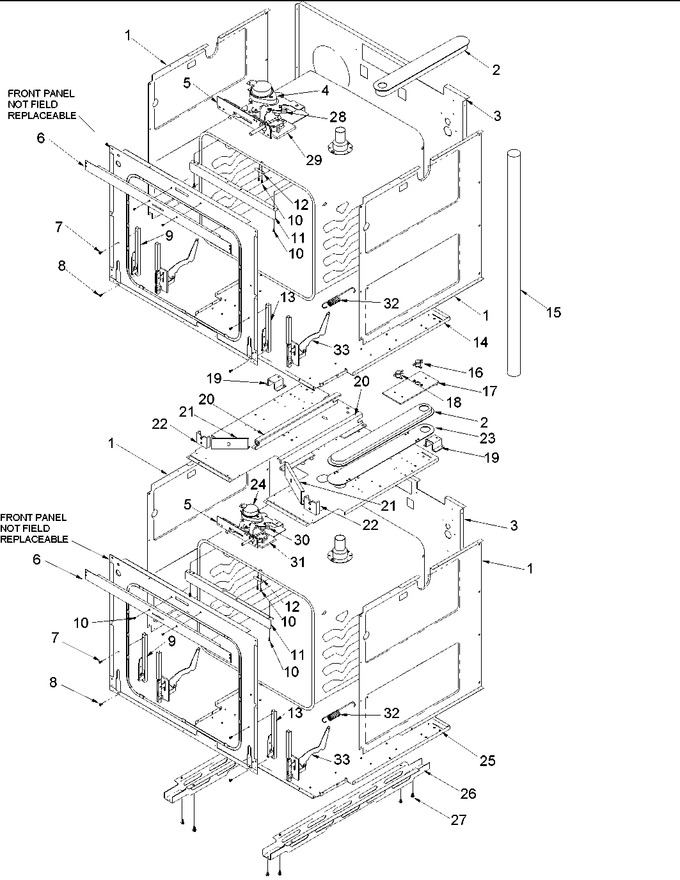

SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Control Compartment And Control Panel


04 - Main Front


05 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0316868		Retainer, Insulation-side		Appelez-nous	-
2	Y0040581		Lower Oven Flue Box W/a Pyro		Appelez-nous	-
3	0305420		Retainer, Insulation-rear		Appelez-nous	-
4	31933501		Latch, Door		Appelez-nous	-
5	31848301		Bracket, Latch Mounting		Appelez-nous	-
6	31797201		Cover, Chip		Appelez-nous	-
7	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
8	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
10	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
11	40850CG		Shield, Reflector (cg)		Appelez-nous	-
12	Y0315022		Cover, Chip		Appelez-nous	-
14	Y0040741		Upper Oven Bottom Pyro W/o		Appelez-nous	-
15	Y0305718		Tube, Oven Vent		Appelez-nous	-
16	Y0042056		Switch Fan Spdt		Appelez-nous	-
17	Y0040783		Switch Plate Qdo-240		Appelez-nous	-
18	Y0316699		Thermostat, High Limit		Appelez-nous	-
19	Y0305717		Support, Rear Oven		Appelez-nous	-
20	Y0305713		Air Channel, Lower Oven		Appelez-nous	-
21	Y0305715		Air Baffle, Lower		Appelez-nous	-
22	Y0060838		Support, Oven Front		Appelez-nous	-
23	Y0041989		Gasket, Vent		Appelez-nous	-
24	31933401		Latch, Door		Appelez-nous	-
25	Y0316867		Oven Bottom-lower		Appelez-nous	-
26	Y0060849		Runner, Base		Appelez-nous	-
27	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
28	31899301		Switch, Micro (latch) Class N		Appelez-nous	-
29	31933701		Assy, Plunger Switch - Class N		Appelez-nous	-
30	31899201		Switch, Micro		Appelez-nous	-
31	31933601		Switch, Plunger		Appelez-nous	-
32	Y0042740		Spring, Oven Door-pyro W/o		Appelez-nous	-
33	Y0301927		Hinge Assembly		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
NI	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
