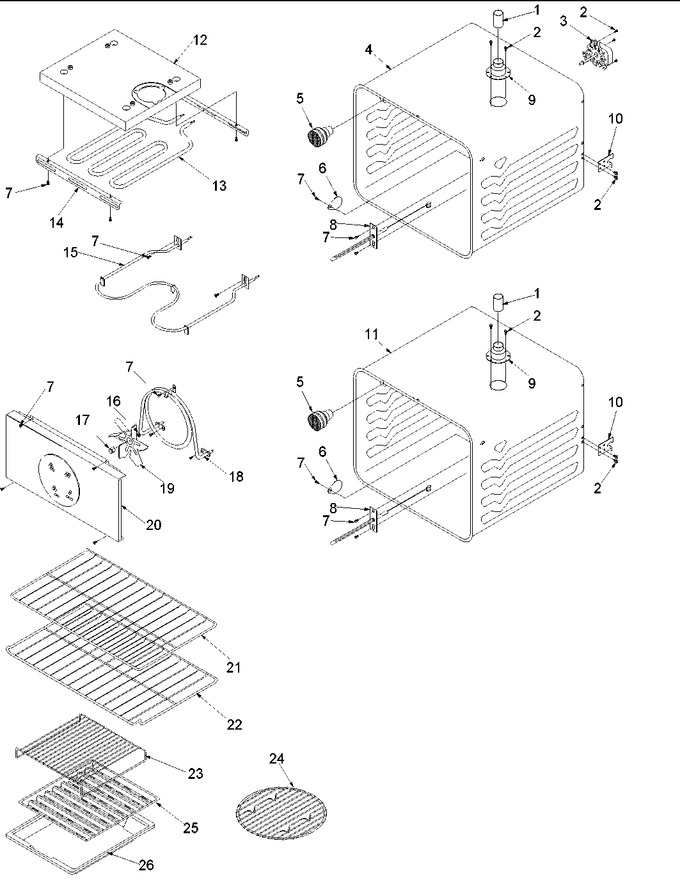

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0042409 | Smoke Eliminator Vent Tube |
|
- | |||||
| 2 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) |
|
Immediately | $ 6.47 | ||||
| 3 | Y0307035 | Fan Assy, Convection (w/blade) |
|
- | |||||
| 4 | 31877101CG | Oven Shell, Lower (cg) |
|
- | |||||
| 5 | WP74011278 | Assy, Oven Light (Replaces: Y0314842) |
|
$ 101.56 | |||||
| 8 | WPY0314907 | Sensor, Temperature (Replaces: Y0314907) |
|
$ 201.45 | |||||
| 9 | Y0058526 | Smoke Eliminator |
|
- | |||||
| 10 | Y0041017 | Bracket, Oven Mounting-pyro |
|
- | |||||
| 11 | 31877301CG | Oven Shell, Upper (cg) |
|
- | |||||
| 12 | Y0306503 | Reflector, Broil Element |
|
- | |||||
| 13 | Y0042138 | Element, Broil (240v-2800w) |
|
- | |||||
| 14 | Y0040902 | Broil Element Support Pyro |
|
- | |||||
| 15 | WP77001092 | Element, Bake (240v-2800w) (Replaces: Y0042137) |
|
$ 130.93 | |||||
| 16 | 0307038 | Washer (zn) |
|
- | |||||
| 17 | 0307037 | Nut, Lt Hand Thread |
|
- | |||||
| 18 | Y0305245 | Element, Conv Oven(240v-2200w) |
|
- | |||||
| 19 | Y0307036 | Blade, Fan |
|
- | |||||
| 20 | 31843201CG | Cover, Fan (cg) |
|
- | |||||
| 21 | 314782J | Rack, Oven 19 3/16`` X 14 3/4`` |
|
- | |||||
| 21 | 314762J | Rack, Oven 19 3/16`` X 16 1/2`` |
|
- | |||||
| 22 | 314781J | Rack, Oven 19 3/16`` X 14 3/4`` |
|
- | |||||
| 23 | Y0306531 | Rack, Broiler |
|
- | |||||
| 24 | Y0042713 | Meat Rack Slo/cook |
|
- | |||||
| 25 | 4396923 | Grid, Broiler (cg) (Replaces: 304451CG) |
|
Immediately | $ 52.04 | ||||
| 26 | 4396923 | Pan, Broiler (cg) (Replaces: 314175CG) |
|
Immediately | $ 52.04 | ||||
| NI | Y0042175 | Bulb, Light |
|
- |
