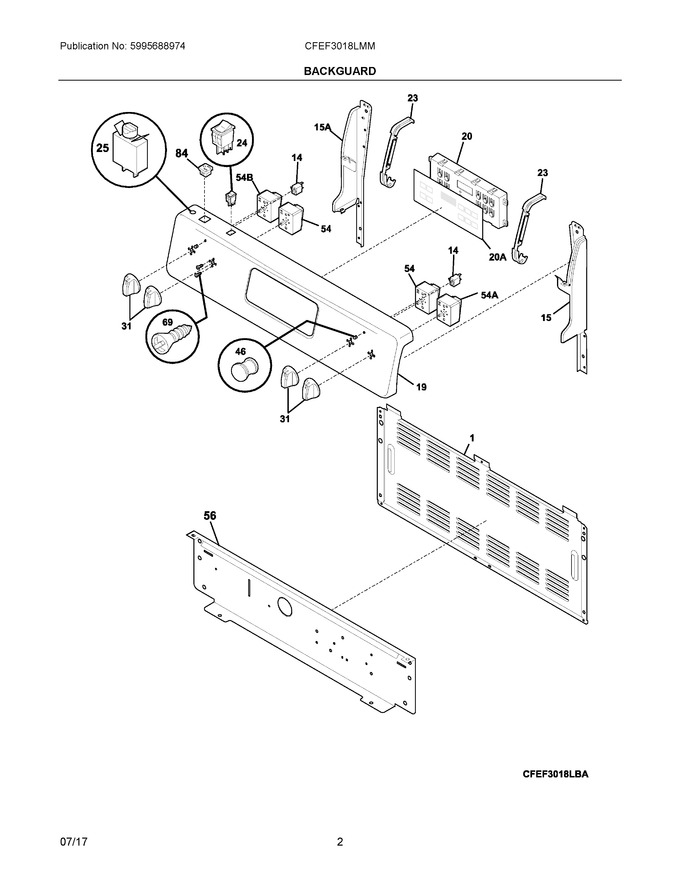

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield, Backguard, Rear Wall (Replaces: 316281800) |
|
$ 57.64 | |||||
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316411405 | Support, Backguard, Black, Rh |
|
$ 83.95 | |||||
| 19 | 316445165 | Panel-bkgd, Sm Gloss |
|
$ 60.17 | |||||
| 20 | 5304509493 | Clock, Es300 |
|
Immediately | $ 212.37 | ||||
| 23 | 316441600 | Bracket-clock Mtg, Black |
|
$ 20.48 | |||||
| 24 | 5304527841 | Switch, Rocker, Black (Replaces: 5304512726) |
|
Immediately | $ 11.38 | ||||
| 25 | 316508401 | Switch, Circuit Break |
|
$ 116.24 | |||||
| 31 | 316543801 | Knob, Control, Black |
|
Immediately | $ 55.38 | ||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 80.34 | ||||
| 56 | 316370101 | Shield, Backguard, Black |
|
$ 34.60 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 84 | 5304512810 | Outlet, Electrical, Miniature, Black |
|
$ 66.06 | |||||
| 15A | 316411404 | Support, Backguard, Black, Lh |
|
$ 83.95 | |||||
| 20A | 316419141 | Overlay, Clock, Black, Es300 |
|
Immediately | $ 56.87 | ||||
| 54A | 316436001 | Switch, Infinite, Large Element |
|
Immediately | $ 51.68 | ||||
| 54B | 316238201 | Switch, Infinite Radian, Dual |
|
Immediately | $ 89.00 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
