Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 330287 Barrier-thermostat Appelez-nous -
2 288247 Indicator Light (oven & Clean) Appelez-nous -
3 288557 Push Switch (fluorescent Light) Appelez-nous -
4 236129 Pal Nut Appelez-nous -
5 330249 Bracket-switch Appelez-nous -
6 233161 Lens-indicator Light (2 Req) Appelez-nous -
7 329683 Glass-control Panel Appelez-nous -
8 321667 Trim Nut Appelez-nous -
9 282279 Frame-control Panel Appelez-nous -
10 329685 Knob-lower Thermostat Appelez-nous -
11 330248 Bracket-thermostat Appelez-nous -
12 239113 Screw 10-32x3/8`` Appelez-nous -
13 329680 Thermostat-lower Appelez-nous -
14 324372 Thermostat-upper Appelez-nous -
15 316849 Screw-10-32x1/2`` Appelez-nous -
16 330251 Mounting Panel-control Appelez-nous -
17 293577 Tubular Clip (3 Req) Appelez-nous -
18 78565 Screw 8-32x3/16`` Appelez-nous -
19 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

20 329681 Clock W/1 Hr. Timer Appelez-nous -
21 109225 Knob-clock (start & Stop Time) (3) Appelez-nous -
22 329686 Knob-upper Thermostat Appelez-nous -
23 329162 Igniter Appelez-nous -
23 102376 Screw 10-32 X 1/2`` Appelez-nous -
23 329675 Main Appelez-nous -
23 329674 Upper Appelez-nous -
23 329364 Gas Valve Switches Appelez-nous -

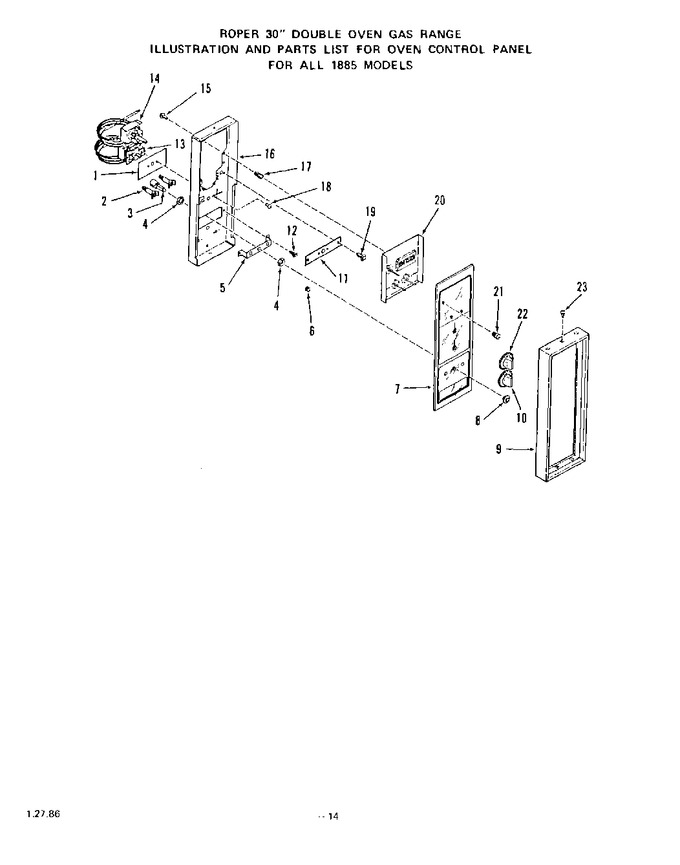

    View Diagram in Separate Window     Print Icon   Print Part List
