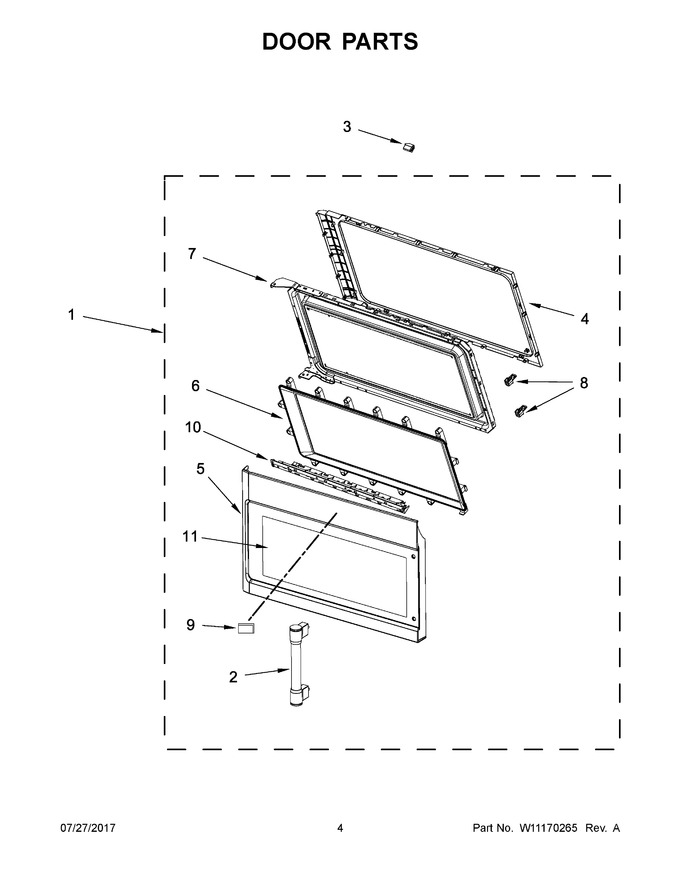

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10672191 | Door, Complete (white Ice) |
|
- | |||||
| 2 | W10679296 | Handle (white Ice) |
|
- | |||||
| 3 | W10643448 | Stopper, Door |
|
$ 19.76 | |||||
| 4 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 5 | W11207467 | Assembly, Door Frame (white) (Replaces: W10589106) |
|
$ 198.44 | |||||
| 6 | W10541732 | Plate, Steam Protection |
|
- | |||||
| 7 | W10568847 | Foil, Door |
|
- | |||||
| 8 | W10740455 | Hooks, Door (Replaces: W10489272) |
|
Immediately | $ 48.17 | ||||
| 9 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 10 | W10589124 | Trim, Door (white) |
|
$ 64.01 | |||||
| 11 | WPW10578513 | Assembly, Door Glass (white) (Replaces: W10578513) |
|
$ 127.77 | |||||
| 10A | W10560421 | Trim, Door (black) |
|
- | |||||
| 11A | WPW10544436 | Assembly, Door Glass (black) (Replaces: W10544436) |
|
$ 109.75 | |||||
| 11B | WPW10578515 | Assembly, Door Glass (stainless) (Replaces: W10578515) |
|
$ 124.22 | |||||
| 1A | W10672192 | Door, Complete (black Ice) |
|
- | |||||
| 1B | W10672193 | Door, Complete (stainless) |
|
$ 252.98 | |||||
| 2A | W10679292 | Handle (stainless) |
|
$ 267.86 | |||||
| 5A | W11207468 | Assembly, Door Frame (black) (Replaces: W10544426) |
|
$ 104.96 | |||||
| 5B | W10593886 | Assembly, Door Frame (stainless) |
|
$ 317.94 |
