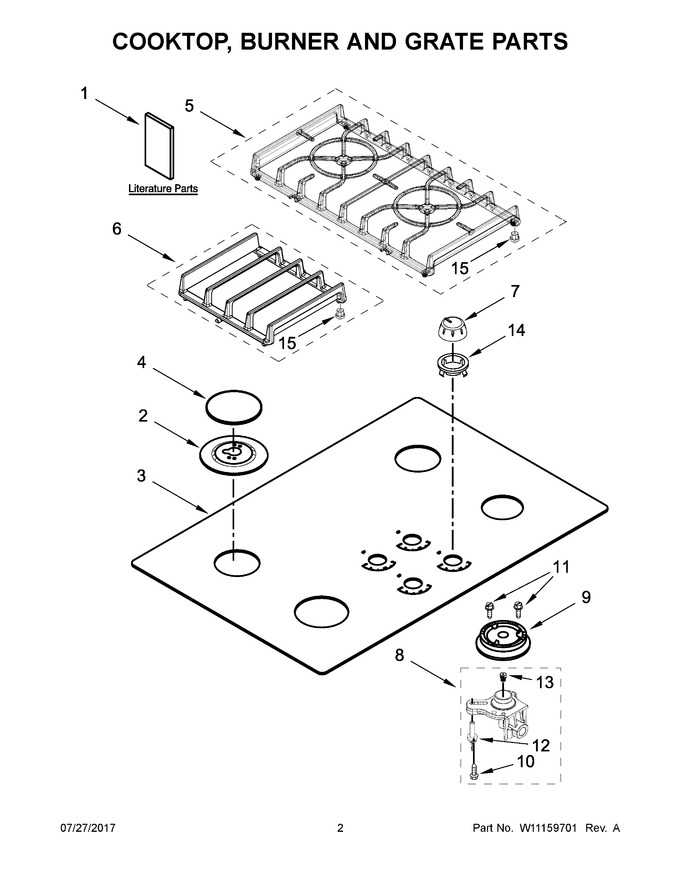

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11100530		Instructions, Installation		Appelez-nous	-
2	8285779BL		Bezel (black (17k) (left Front))				$ 111.57
3	W10564558		Cooktop (black)   (Replaces: W10491339)				$ 767.08
4	WP8286156CB		Cap, Burner (coal Black (left Front))   (Replaces: 8286156CB)				$ 106.95
5	W11502175		Grate, Burner (coal Black)   (Replaces: 8285879CB)				$ 218.02
6	W11242862		Grate, Center (coal Black)   (Replaces: 8285880CB)				$ 164.56
7	WPW10484149		Knob, Control (stainless)   (Replaces: W10484149)				$ 42.68
8	W11134289		Assembly, Orifice Holder (17k) (left Front)   (Replaces: W10779149)				$ 82.93
9	WPW10406878		Head, Burner (17.5k) (left Front)   (Replaces: W10406878)			Immediately	$ 92.12
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
11	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
12	W11134295		Electrode (left Front & Left Rear)   (Replaces: W10779131)				$ 54.81
13	8286474		Orifice (left Front)				$ 81.03
14	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.58
15	8186321		Bumper, Grate (for Burner Grate Only)   (Replaces: 9760219)			Immediately	$ 9.54
12A	W11134296		Electrode (right Front & Right Rear)   (Replaces: W10779132)				$ 54.81
13A	WP3192523		Orifice (left Rear)   (Replaces: 3192523)				$ 80.19
13B	WP3192529		Orifice (right Front)   (Replaces: 3192529)				$ 86.35
13C	W10639157		Orifice (right Rear)		Appelez-nous	-
14A	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 7.40
15A	W10185266		Bumper, Grate (for Center Grate Only)   (Replaces: 8286695)			Immediately	$ 13.26
1A	8304571		Instructions, Undercounter		Appelez-nous	-
1B	W11100534		Guide, Use & Care		Appelez-nous	-
1C	W11100532		Instructions, Lp Conversion		Appelez-nous	-
2A	9753602BL		Bezel (black (12k) (left Rear & Right Rear))				$ 59.66
2B	9753601BL		Bezel (black (6k) (right Front))				$ 28.59
2C	8285779CG		Bezel (grey (17k) (left Front))				$ 111.78
2D	9753602CG		Bezel (grey (12k) (left Rear & Right Rear))				$ 59.90
2E	9753601CG		Bezel (grey (6k) (right Front))				$ 129.08
3A	W10564560		Cooktop (white)   (Replaces: W10491342)		Appelez-nous	-
4A	WP8286153CB		Cap, Burner (coal Black (left Rear))   (Replaces: 8286153CB)				$ 61.97
4B	WP8286154CB		Cap, Burner (coal Black (right Front))   (Replaces: 8286154CB)				$ 77.94
4C	WP8286155CB		Cap, Burner (coal Black (right Rear))   (Replaces: 8286155CB)				$ 104.70
4D	8286156CG		Cap, Burner (cumberland Grey (left Front))				$ 114.65
4E	WP8286153CG		Cap, Burner (cumberland Grey (left Rear))   (Replaces: 8286153CG)				$ 72.00
4F	WP8286154CG		Cap, Burner (cumberland Grey (right Front))   (Replaces: 8286154CG)				$ 86.04
4G	WP8286155CG		Cap, Burner (cumberland Grey (right Rear))   (Replaces: 8286155CG)				$ 89.27
5A	W11242860		Grate, Burner (cumberland Grey)   (Replaces: 8285879CG)				$ 233.74
6A	W11242858		Grate, Center (cumberland Grey)   (Replaces: 8285880CG)				$ 257.16
7A	W10484148		Knob, Control (grey)		Appelez-nous	-
8A	W11134292		Assembly, Orifice Holder (9.1k) (left Rear)   (Replaces: W10779150)				$ 82.93
8B	W11134293		Assembly, Orifice Holder (6k) (right Front)   (Replaces: W10779152)		Appelez-nous	-
8C	W11134294		Assembly, Orifice Holder (12.5k) (right Rear)   (Replaces: W10779151)		Appelez-nous	-
9A	WPW10406283		Burner Head, Semi (9.5k) (left Rear)   (Replaces: W10406283)				$ 66.87
9B	WPW10406797		Head, Burner (12.5k) (right Front)   (Replaces: W10406797)				$ 79.64
9C	WPW10406243		Head, Burner (6k) (right Rear)   (Replaces: W10406243)			Immediately	$ 33.50
NI	4173634		Bushing   (Replaces: FE02349)				$ 5.83
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP4456905		Harness, Switch   (Replaces: 4456905)			Immediately	$ 176.83
NI	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 105.67
