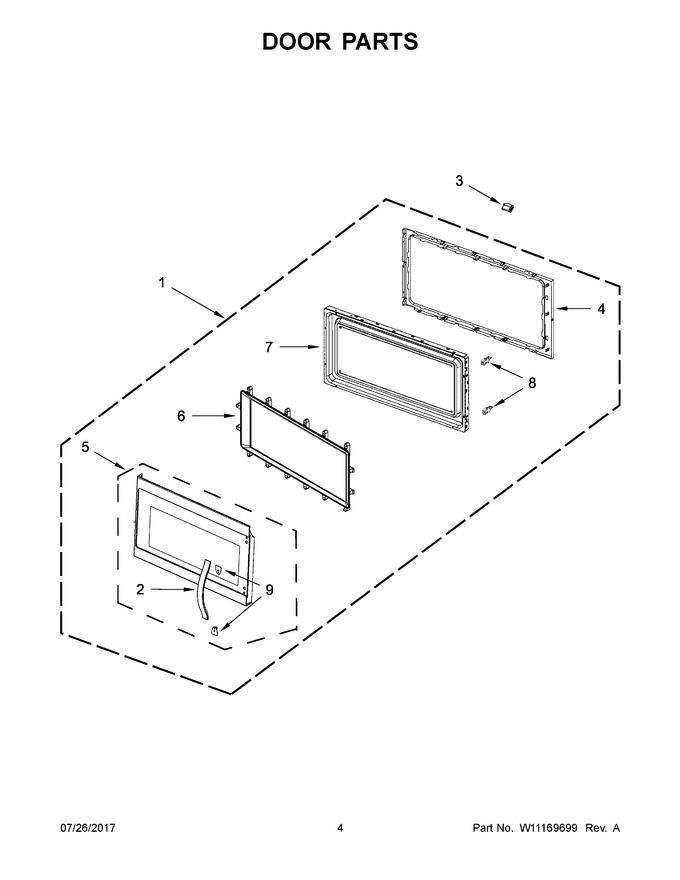

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10893413 | Door, Complete (white) |
|
$ 302.15 | |||||
| 2 | W10565242 | Handle (white) |
|
- | |||||
| 3 | W10643975 | Stopper, Door (white And White Ice Models) |
|
$ 19.47 | |||||
| 4 | W10647773 | Frame, Inner (white And White Ice Models) |
|
$ 76.63 | |||||
| 5 | W10647766 | Assembly, Door Frame (white) |
|
- | |||||
| 6 | W10562560 | Plate, Steam Protection (white And White Ice Models) |
|
- | |||||
| 7 | W10893418 | Foil, Door (white And White Ice Models) |
|
$ 229.86 | |||||
| 8 | W10740455 | Hook, Door |
|
Immediately | $ 48.17 | ||||
| 9 | W10514261 | Spacer, Handle |
|
- | |||||
| 1A | W10893414 | Door, Complete (black) |
|
- | |||||
| 1B | W10893416 | Door, Complete (white Ice) |
|
$ 316.88 | |||||
| 1C | W10893417 | Door, Complete (black Ice) |
|
- | |||||
| 2A | W10514244 | Handle (black) |
|
$ 76.25 | |||||
| 2B | W10513990 | Handle (stainless) |
|
$ 163.49 | |||||
| 3A | W10643974 | Stopper, Door (black And Black Ice Models) |
|
$ 19.41 | |||||
| 4A | W10647772 | Frame, Inner (black And Black Ice Models) |
|
$ 85.98 | |||||
| 5A | W10647767 | Assembly, Door Frame (black) |
|
$ 268.71 | |||||
| 5B | W10647768 | Assembly, Door Frame (white Ice) |
|
$ 308.47 | |||||
| 5C | W10647769 | Assembly, Door Frame (black Ice) |
|
- | |||||
| 6A | W10514243 | Plate, Steam Protection (black And Black Ice Models) |
|
$ 67.77 | |||||
| 7A | W10893422 | Foil, Door (black And Black Ice Models) |
|
$ 228.24 |
