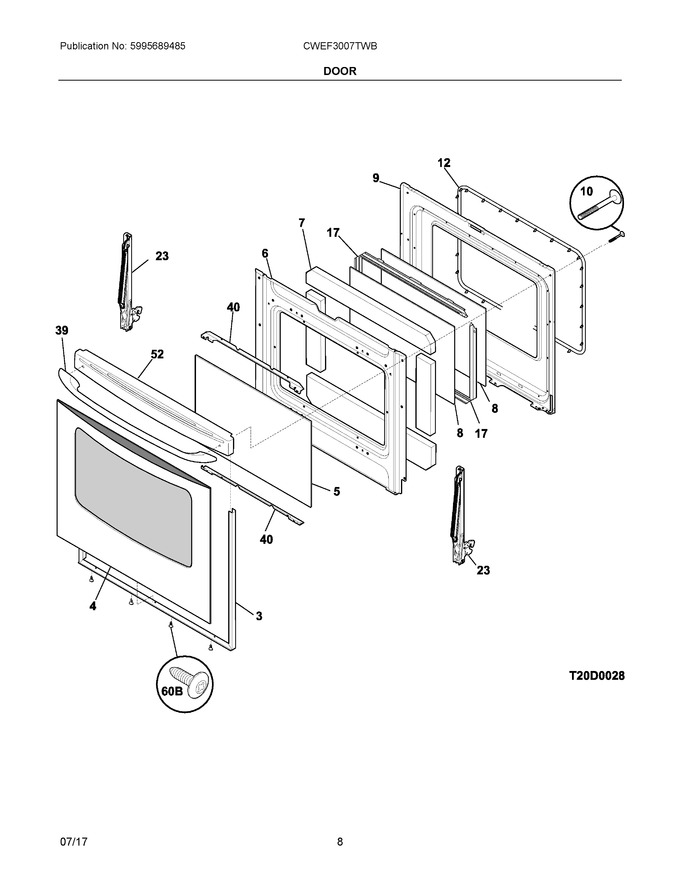

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935380		Trim Kit-door, 3 Sided, White, W/tape				$ 77.26
4	316202818		Glass, Oven Door, White, Outer				$ 247.99
6	316222711		Shield, Wool, Black, Oven Door				$ 47.90
8	5304503232		Glass, Oven Door, Inner				$ 116.95
9	316230635		Liner, Oven Door				$ 135.37
10	316001014		Screw, Waf Hd Sq, 10-24 X 1.6, Handle, (2)			Immediately	$ 47.03
12	316239700		Seal, Oven Door			Immediately	$ 152.43
17	5304520152		Spacer, Door Glass   (Replaces: 5304503231)				$ 23.51
23	316575924		Hinge, Oven Door				$ 64.49
39	5304530039		Handle, Oven Door, White   (Replaces: 316456901)			Immediately	$ 167.43
52	316491200		Cap, Door Trim, White			Immediately	$ 119.83
10B	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
