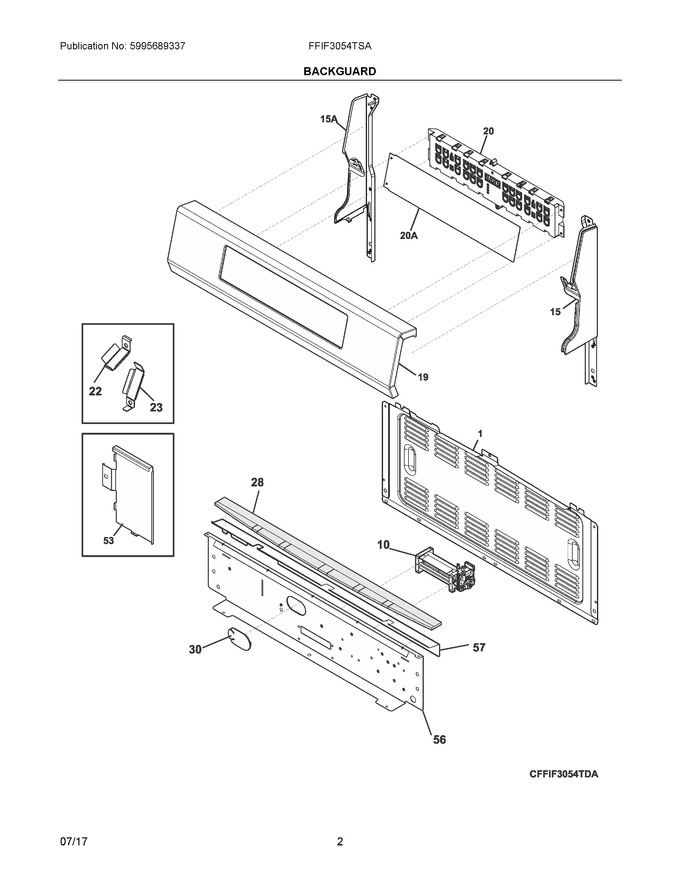

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281801)				$ 57.64
10	5304511092		Fan Assembly, Blower, Condensation			Immediately	$ 263.15
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304511080		Panel, Backguard, Stainless				$ 179.84
20	5304514663		Controller, Electronic, Es330   (Replaces: 5304512934)				$ 468.65
22	5304512931		Bracket, Control Support, Upper, Lci				$ 3.55
23	5304512932		Bracket, Control Support, Lower, Lci				$ 3.55
28	316528701		Insulation, Manifold Panel		Appelez-nous	-
30	316577600		Plug, Button, Oval, Harness				$ 14.89
53	316355000		Shield, Flue, Inner		Appelez-nous	-
56	316234026		Shield, Backguard, Black, Inner		Appelez-nous	-
57	808950203		Shield, Steam				$ 12.89
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
20A	5304511089		Overlay, Control, Black, Es330				$ 53.85
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	318165800		Spacer, Glass, Foam				$ 17.72
