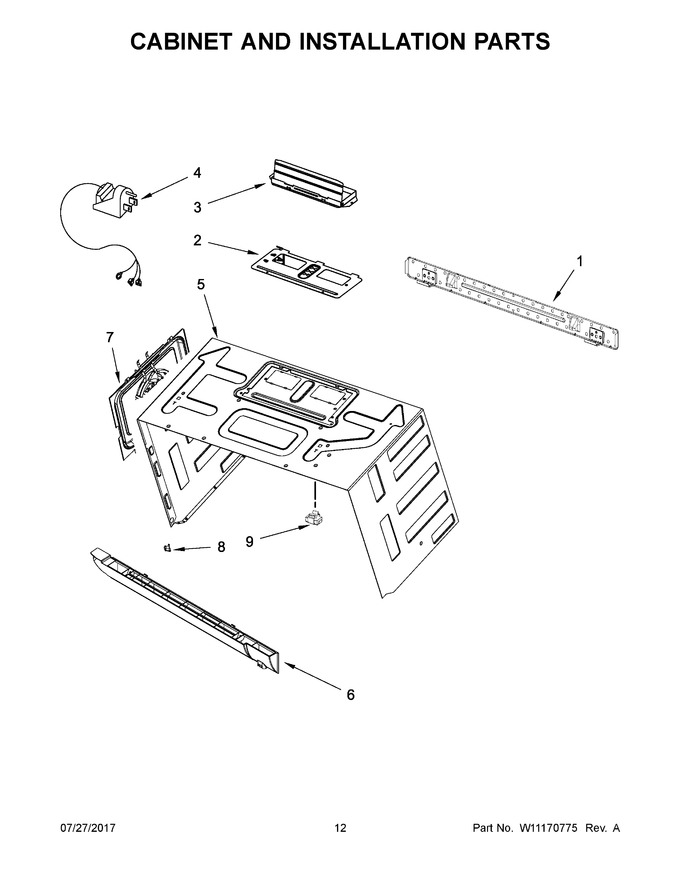

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting			Immediately	$ 21.16
2	W10625423		Cover, Fan Motor				$ 69.87
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 65.74
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 18.48
5	W11446920		Case, Outer (white)   (Replaces: W10571409)				$ 225.68
6	W10701696		Grille, Vent (white)				$ 70.77
7	W10665531		Assembly, Convection Motor And Fan				$ 306.20
8	W10599629		Thermostat, Convection				$ 30.72
9	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
5A	W10818229		Case, Outer (black)   (Replaces: W10571408)				$ 228.66
6A	W10701697		Grille, Vent (black)				$ 59.88
NI	W10571451		Insulation, Top		Appelez-nous	-
NI	W10533304		Miscellaneous Parts, Harness, Control		Appelez-nous	-
NI	N/P		Parts Not Illustrated		Appelez-nous	-
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 21.50
NI	W10834331		Miscellaneous Parts, Harness, Headlamp And Turntable				$ 127.47
NI	W10913752		Miscellaneous Parts, Harness, Main				$ 142.95
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10190018		Miscellaneous Parts, Template, Upper (english & French)			Immediately	$ 6.47
NI	W10190020		Miscellaneous Parts, Template, Upper (english & Spanish)				$ 56.21
NI	W10821385		Miscellaneous Parts, Installation, Hardware   (Replaces: 8206614)			Immediately	$ 88.90
NI	W10892377		Insulation, Bottom		Appelez-nous	-
NI	W10571453		Insulation, Side		Appelez-nous	-
NI	W10571450		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
