01 - Cover Sheet

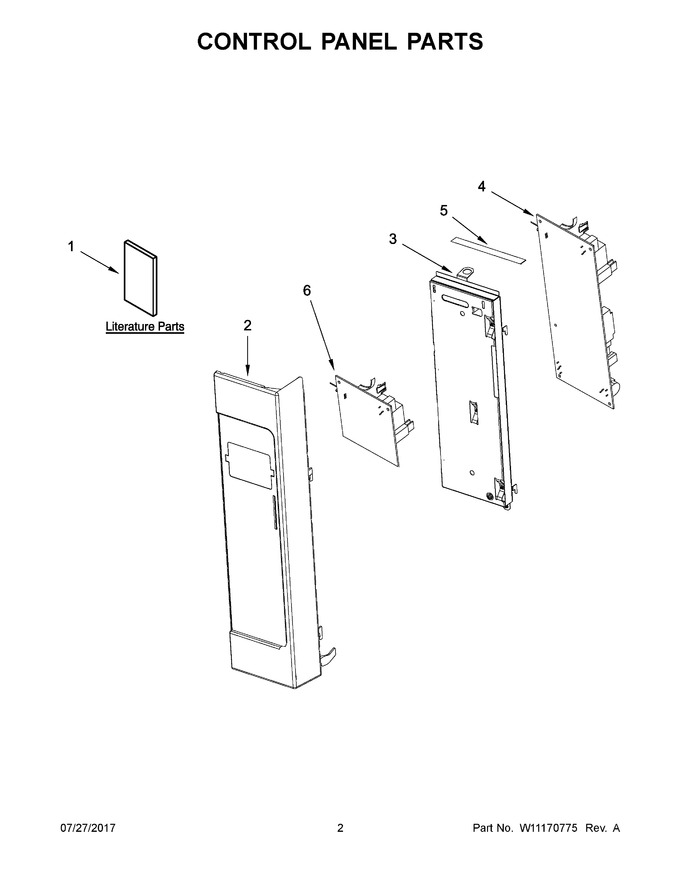

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10724870 | Installation Instructions |
|
- | |||||
| 2 | W10672190 | Assembly, Control Panel (white Ice) |
|
- | |||||
| 3 | W10540727 | Background, Control |
|
$ 30.53 | |||||
| 4 | W11361144 | Pcba, Appliance Control Unit (Replaces: W10881545) |
|
$ 246.79 | |||||
| 5 | W10540721 | Seal, Control |
|
$ 23.63 | |||||
| 6 | W11381424 | Pcba, User Interface (Replaces: W10881546) |
|
$ 243.69 | |||||
| 1A | W10847762 | Use And Care Guide |
|
- | |||||
| 1B | W10598205 | Quick Reference Guide |
|
- | |||||
| 1C | W10847770 | Tech Sheet |
|
- | |||||
| 2A | W10672189 | Assembly, Control Panel (black Ice) |
|
- | |||||
| 2B | W10609182 | Assembly, Control Panel (stainless) |
|
$ 223.91 |
