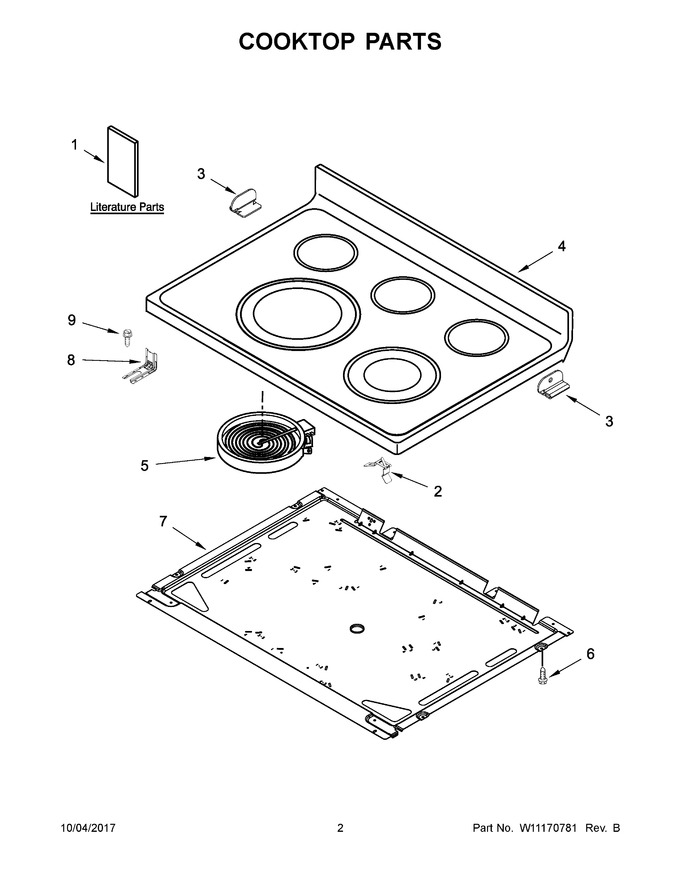

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11085337 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 28.73 | |||||
| 4 | W11165675 | Cooktop (black) (Replaces: W10865061) |
|
$ 489.97 | |||||
| 5 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 122.99 | ||||
| 8 | W11447673 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.64 | ||||
| 9 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 1A | W11085358 | Use And Care Guide |
|
- | |||||
| 1B | W11096112 | Tech Sheet (english) |
|
- | |||||
| 1C | W11096060 | Guide, Quick Start (english/french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 3A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| 5A | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 5B | W10823720 | Element (3000w) (left Front) (Replaces: W10187839) |
|
Immediately | $ 302.91 | ||||
| 5B | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 5C | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 113.96 | |||||
| 5C | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 5D | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 113.96 | |||||
| 5D | W10823720 | Element (3000w) (left Front) (Replaces: W10187839) |
|
Immediately | $ 302.91 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11176675 | Harness, Main (Replaces: W10884854) |
|
$ 205.24 | |||||
| NI | W11134592 | Harness, Warm Zone (Replaces: W10174460) |
|
$ 100.51 | |||||
| NI | W11025427 | Harness, Wifi Module |
|
- | |||||
| NI | W11188421 | Harness, Cooktop (right) (Replaces: W10349696) |
|
Immediately | $ 183.65 | ||||
| NI | W11190447 | Harness, Cooktop (left) (Replaces: W10829582) |
|
Immediately | $ 169.55 |
