01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts

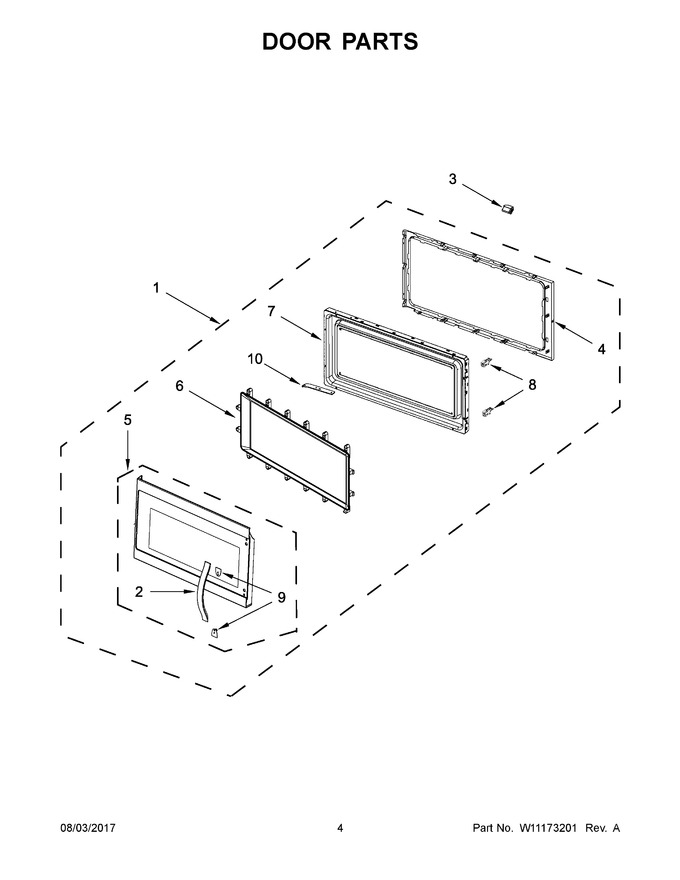

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629792		Door, Complete (white)				$ 310.15
2	W10565242		Handle (white)		Appelez-nous	-
3	W10643975		Stopper, Door (white And White Ice Models)				$ 19.47
4	W10647773		Frame, Inner (white And White Ice Models)				$ 76.63
5	W10647766		Assembly, Door Frame (white)		Appelez-nous	-
6	W10562560		Plate, Steam Protection (white And White Ice Models)		Appelez-nous	-
7	W10647794		Foil, Door (white And White Ice Models)		Appelez-nous	-
8	W10740455		Hook, Door			Immediately	$ 48.17
9	W10514261		Spacer, Handle		Appelez-nous	-
10	W10850638		Bracket, Lower Hinge		Appelez-nous	-
1A	W10629793		Door, Complete (black)				$ 327.77
1B	W10629794		Door, Complete (stainless)				$ 291.27
1C	W10629795		Door, Complete (white Ice)				$ 312.99
1D	W10629796		Door, Complete (black Ice)				$ 352.41
2A	W10514244		Handle (black)				$ 76.25
2B	W10889547		Handle (stainless)   (Replaces: W10764386)				$ 146.82
3A	W10643974		Stopper, Door (for Black, Stainless & Black Ice Models)				$ 19.41
4A	W10647772		Frame, Inner (for Black, Stainless & Black Ice Models)				$ 85.98
5A	W10647767		Assembly, Door Frame (black)				$ 268.71
5B	W10647765		Assembly, Door Frame (stainless)				$ 356.91
5C	W10647768		Assembly, Door Frame (white Ice)				$ 308.47
5D	W10647769		Assembly, Door Frame (black Ice)		Appelez-nous	-
6A	W10514243		Plate, Steam Protection (for Black, Stainless & Black Ice Models)				$ 67.77
7A	W10647793		Foil, Door (for Black, Stainless & Black Ice Models)				$ 172.82

    View Diagram in Separate Window       Print Part List
