SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

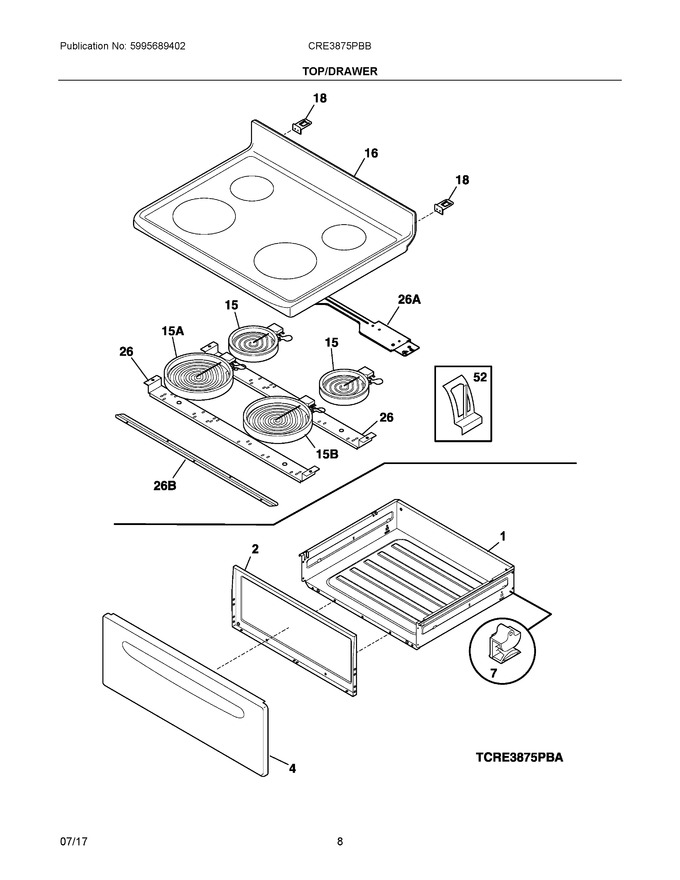

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	316403502		Panel, Drawer Front, Black				$ 30.92
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	316531983		Main, Top, Smooth/glass, Black			Immediately	$ 570.90
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304500986		Channel, Element Support, (2)				$ 41.68
52	316461700		Clip, Element Mtg				$ 12.05
15A	316555800		Element, Dual, 9"/6", Surface, 1300w/1200w, (2), Radiant			Immediately	$ 138.90
15B	316291200		Element, Radiant, 12", Top, 2700w   (Replaces: 5304510566)			Immediately	$ 235.31
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316214202		Bracket, Chassis Support, Front				$ 25.41
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316468100		Cleaner, Smoothtop, W/sponge				$ 4.88
NI	5304511541		Haness, Wiring, Surface		Appelez-nous	-
