SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

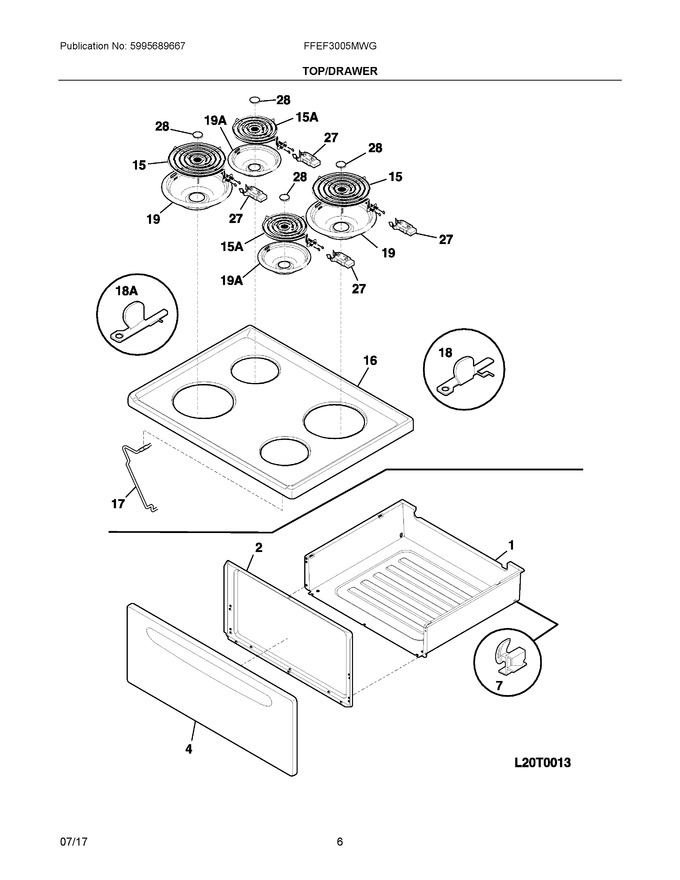

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304511288		Liner, Drawer   (Replaces: 316284800)				$ 57.64
4	316231327		Panel, Drawer, White				$ 109.73
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	316442300		Element, Surface, 8", Large   (Replaces: 318372213)			Immediately	$ 59.16
16	316245402		Main Top, White				$ 478.49
17	316066900		Rod, Maintop Support				$ 66.31
18	08067747		Bracket, Hinge, Main Top Rh		Appelez-nous	-
19	316048413		Pan-surface Element, Chrome, Large/8 Inch			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion, 1 1/2"dia, Black, Surface Element				$ 64.46
15A	318372210		Element, Surface, 6", Small			Immediately	$ 20.21
18A	08067746		Bracket, Hinge, Main Top Lh		Appelez-nous	-
19A	316048414		Pan-surface Element, Chrome, Small/6 Inch			Immediately	$ 16.11
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316580408		Harness, Wiring, Surface Units		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
