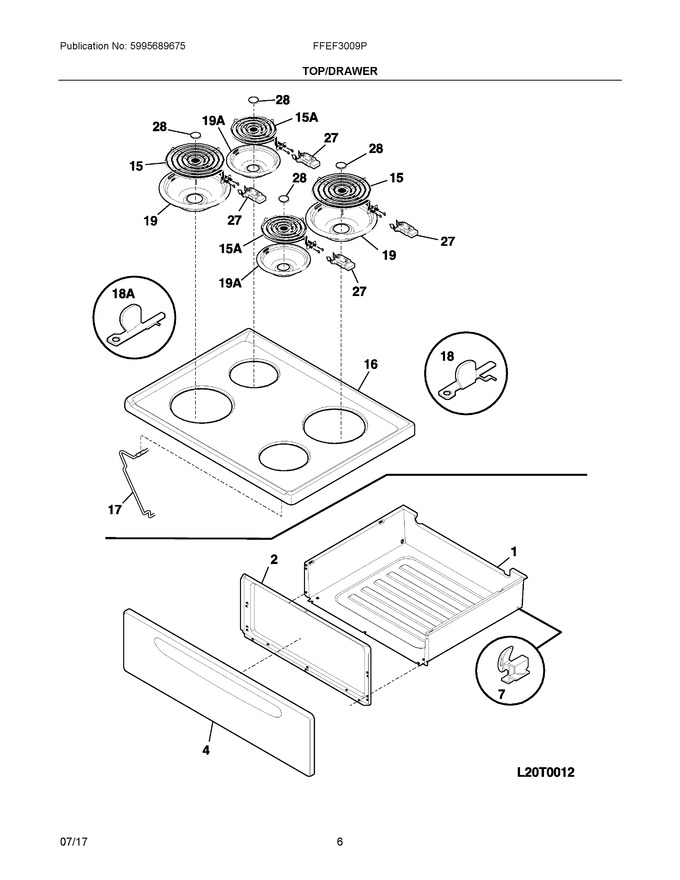

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	316403520		Panel, Drawer Front, Black				$ 66.63
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	316442301		Element, Surface, 8", Large   (Replaces: 318372214)			Immediately	$ 44.39
16	316245404		Main Top, Black		Appelez-nous	-
17	316066900		Rod, Maintop Support				$ 66.31
18	08067747		Bracket, Hinge, Main Top Rh		Appelez-nous	-
19	316048413		Pan-surface Element, Chrome, Large/8 Inch			Immediately	$ 9.85
15A	318372211		Element, Surface, 6", Small			Immediately	$ 45.14
18A	08067746		Bracket, Hinge, Main Top Lh		Appelez-nous	-
19A	316048414		Pan-surface Element, Chrome, Small/6 Inch			Immediately	$ 16.11
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316580405		Harness, Wiring, Surface Units		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
