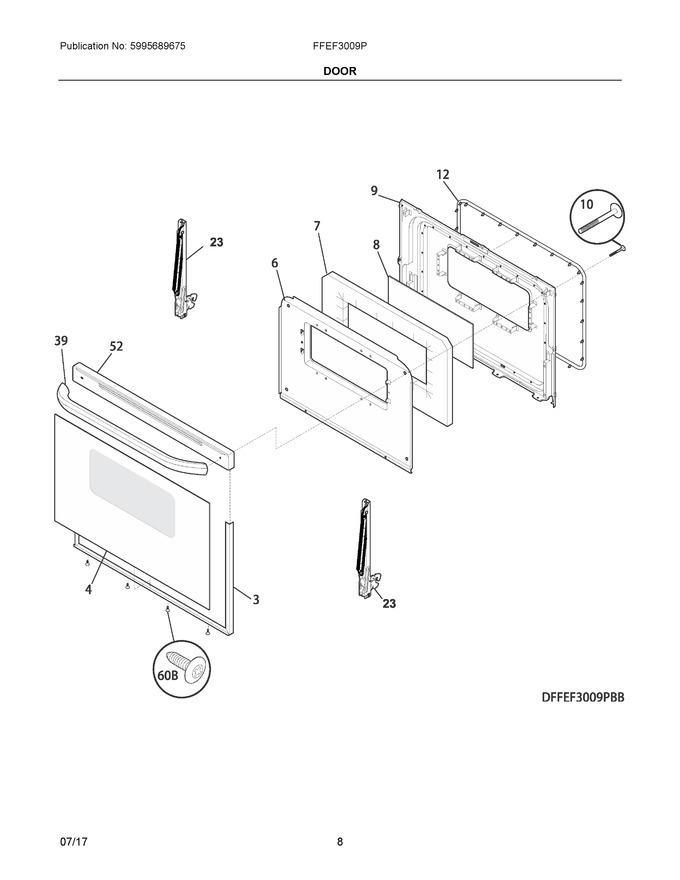

05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935380 | Trim Kit-door, 3 Sided, White, W/tape |
|
$ 77.26 | |||||
| 4 | 5303935204 | Glass, Door Kit, White, Outer, W/foil Tape |
|
$ 454.31 | |||||
| 6 | 316222703 | Shield, Oven Door, Wool (Replaces: 316222709) |
|
$ 78.67 | |||||
| 7 | 316236802 | Insulation, Oven Door |
|
$ 41.63 | |||||
| 8 | 5304506004 | Glass, Oven Door, Inner |
|
$ 53.81 | |||||
| 9 | 316230634 | Liner, Oven Door |
|
$ 147.12 | |||||
| 10 | 316278700 | Screw, Wafer Head, 10-14 X 1 3/8, Handle Mtg |
|
Immediately | $ 27.50 | ||||
| 12 | 316239700 | Seal, Oven Door |
|
Immediately | $ 152.43 | ||||
| 23 | 316575921 | Hinge, Oven Door, Orange |
|
Immediately | $ 42.47 | ||||
| 39 | 316545301 | Handle, Door/drawer, White |
|
Immediately | $ 130.85 | ||||
| 52 | 316491200 | Cap, Door Trim, White |
|
Immediately | $ 119.83 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316483102 | Label, Anti-tip (Replaces: 316483100) |
|
$ 3.56 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
