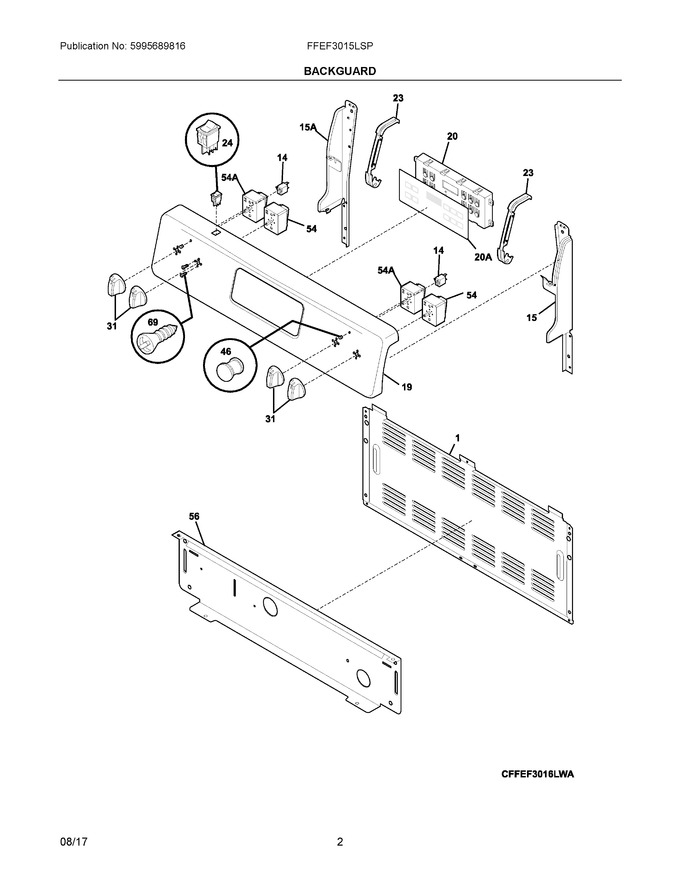

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316541629		Panel, Backguard, Black				$ 158.43
20	5304511908		Clock, Es200				$ 283.43
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304527841		Switch, Rocker, Black   (Replaces: 5304512726)			Immediately	$ 11.38
31	316543801		Knob, Control, Black			Immediately	$ 55.38
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 66.74
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316419140		Overlay, Clock, Black, Es200				$ 41.11
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 51.68
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
