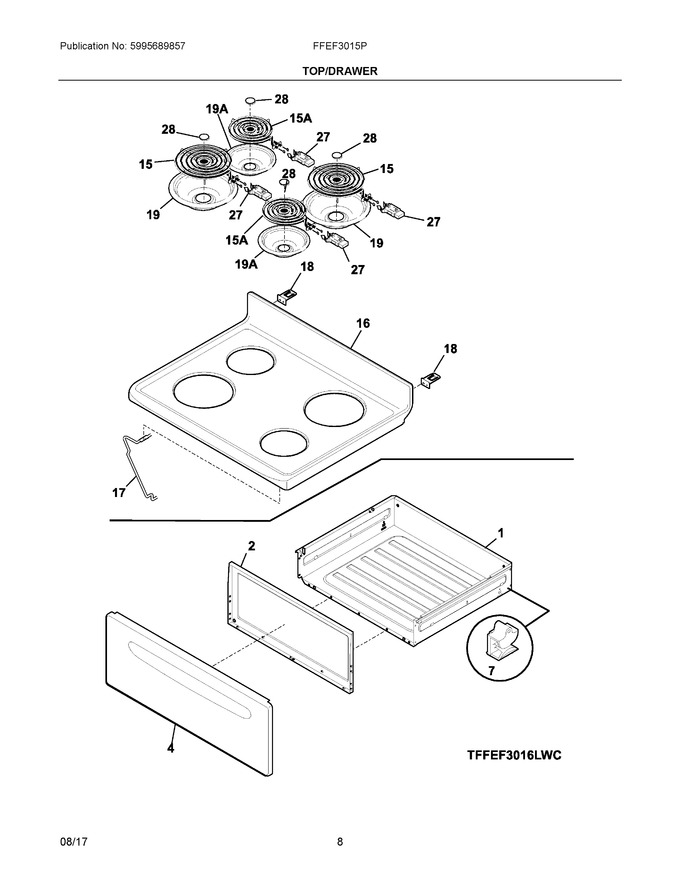

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	316403520		Panel, Drawer Front, Black				$ 66.63
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	316442300		Element, Surface, 8", Large   (Replaces: 318372213)			Immediately	$ 59.16
16	316202387		Main Top, Black				$ 448.19
17	316057601		Rod, Support, Main Top				$ 64.49
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
19	316048413		Pan-surface Element, Chrome, Large/8 Inch			Immediately	$ 9.85
15A	318372210		Element, Surface, 6", Small			Immediately	$ 20.21
19A	316048414		Pan-surface Element, Chrome, Small/6 Inch			Immediately	$ 16.11
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316580400		Harness, Wiring, Surface Units				$ 184.37
NI	316045000		Clip, Wiring Harness, Green, Main Top		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
