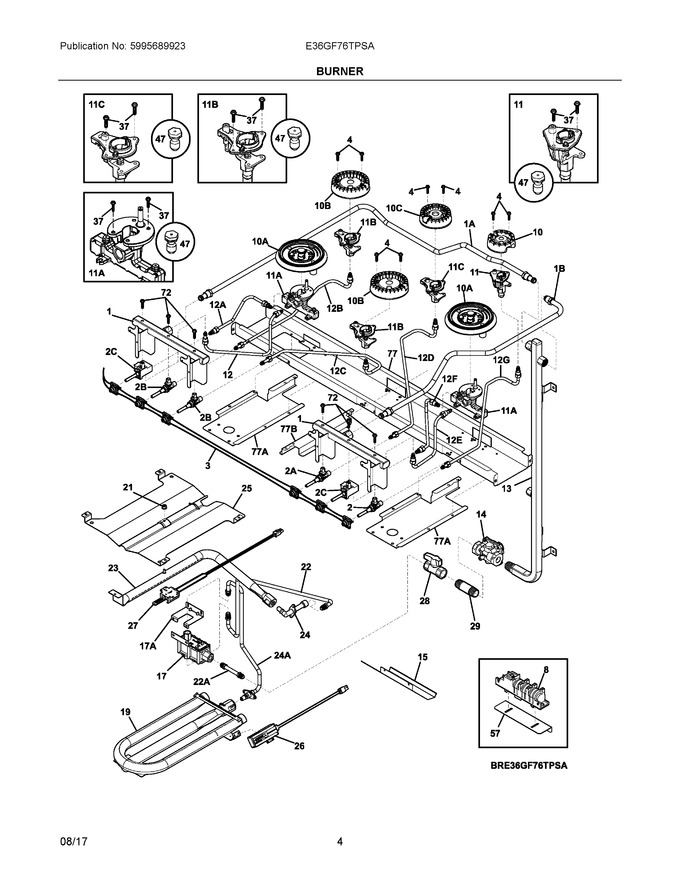

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509808		Manifold Pipe, (2)		Appelez-nous	-
2	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
3	5304509820		Switch Assembly, Ignitor, W/harness				$ 100.56
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
8	808608804		Spark Module			Immediately	$ 76.06
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	807544001		Tube, Burner, Left Front, Dual Simmer		Appelez-nous	-
13	5304509809		Tube, Supply, Manifold		Appelez-nous	-
14	5304509817		Regulator, Pressure		Appelez-nous	-
15	5304512680		Shield, Wire, Bake Ignitor		Appelez-nous	-
17	5303210798		Valve, Safety			Immediately	$ 587.56
19	5304509403		Burner, Bake		Appelez-nous	-
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304512681		Tube, Broiler Supply		Appelez-nous	-
23	316404302		Burner, Broiler				$ 104.18
24	316409703		Elbow, Mixer, Broil				$ 138.70
25	316401301		Baffle, Broil Burner				$ 173.57
26	5303935066		Ignitor, Oven Burner   (Replaces: 318177710)			Immediately	$ 59.58
27	5304509376		Ignitor, Broil Burner		Appelez-nous	-
28	318087450		Valve, Shut Off		Appelez-nous	-
29	5304509819		Pipe, Connector, Shut Off Valve		Appelez-nous	-
37	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
47	5304512676		Kit, Lp Conversion		Appelez-nous	-
57	5304509835		Bracket, Spark Module		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318355513		Bracket, Channel Mtg.		Appelez-nous	-
10A	5304501023		Burner Assembly, G5				$ 165.99
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
11A	316440100		Ignitor/orifice Assy., Top Burner, Twin, 17k, W/holder				$ 167.98
11B	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 12.33
11C	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
12A	807544002		Tube, Burner, Left Front, Dual Main		Appelez-nous	-
12B	807544003		Tube, Burner, Left Rear		Appelez-nous	-
12C	807544004		Tube, Burner, Center Front		Appelez-nous	-
12D	807544005		Tube, Burner, Center Rear		Appelez-nous	-
12E	807544006		Tube, Burner, Right Front, Dual Simmer		Appelez-nous	-
12F	807544007		Tube, Burner, Right Front, Dual Main		Appelez-nous	-
12G	807544008		Tube, Burner, Right Rear		Appelez-nous	-
17A	5304509818		Bracket, Safety Valve		Appelez-nous	-
1A	318305453		Tube, Manifold, Interconnect				$ 111.48
1B	318305454		Tube, Manifold, Interconnect				$ 102.77
22A	5304509816		Tube, Oven Supply		Appelez-nous	-
24A	5304509845		Tube, Mixer		Appelez-nous	-
2A	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
2B	5304507282		Valve, Top Burner, Red Stem, 1800btu			Immediately	$ 53.85
2C	316272310		Valve, Dual Burner, Twin				$ 187.32
77A	318363803		Bracket, Channel Mtg		Appelez-nous	-
77B	318363903		Bracket, Channel Mtg.		Appelez-nous	-
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316566901		Sleeve, Insulator				$ 12.89
NIA	5304509840		Harness, Ignitor Module		Appelez-nous	-
