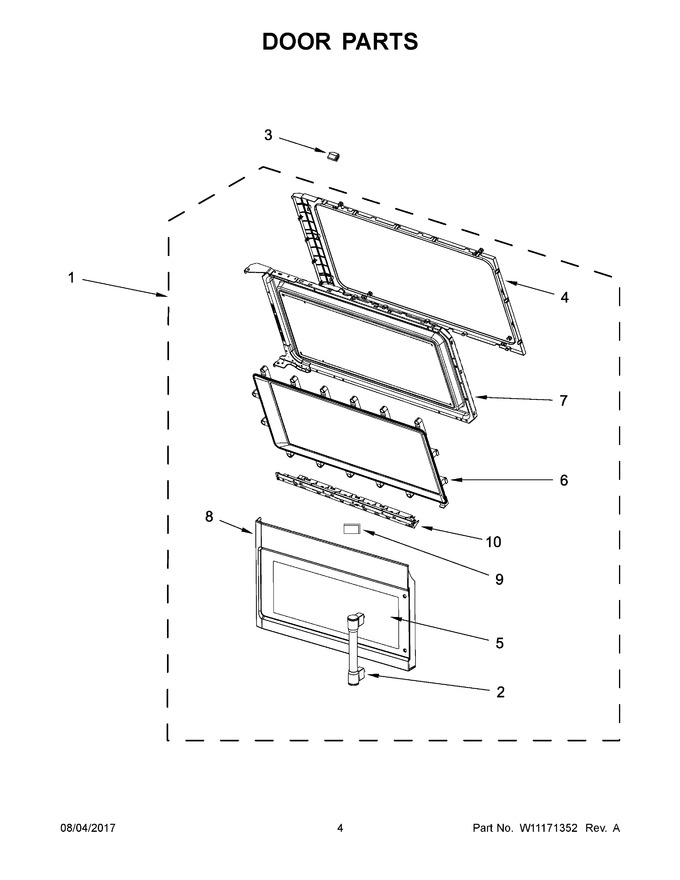

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10893427		Door, Complete (stainless)		Appelez-nous	-
2	W11034246		Handle (stainless)   (Replaces: W10887533)		Appelez-nous	-
3	W10643974		Stopper, Door				$ 19.41
4	W10648086		Frame, Inner				$ 86.25
5	W11034243		Glass, Outer Door (stainless)   (Replaces: W10830689)		Appelez-nous	-
6	W10514243		Plate, Steam Protection				$ 67.77
7	W10647793		Foil, Door				$ 172.82
8	W10888484		Frame, Door (stainless)		Appelez-nous	-
9	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 36.31
10	W10892376		Trim, Door (white)		Appelez-nous	-
10A	W10892375		Trim, Door (black)		Appelez-nous	-
1A	W10893424		Door, Complete (white Ice)		Appelez-nous	-
1B	W10893428		Door, Complete (black Ice)		Appelez-nous	-
2A	W11034247		Handle (white Ice)   (Replaces: W10887540)		Appelez-nous	-
5A	WPW10578513		Glass, Outer Door (white)   (Replaces: W10578513)				$ 127.77
5B	W11034239		Glass, Outer Door (black)   (Replaces: W10830684)		Appelez-nous	-
8A	W11207467		Frame, Door (white)   (Replaces: W10888477)				$ 198.44
8B	W11207468		Frame, Door (black)   (Replaces: W10888476)				$ 104.96
