SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Control Compartment And Control Panel


04 - Main Front


05 - Oven Door

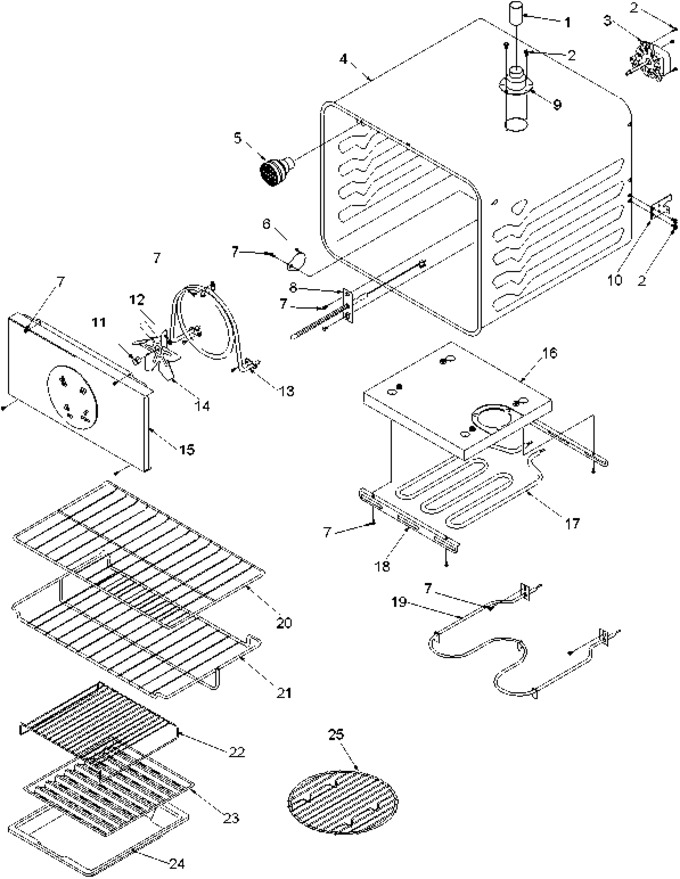

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0042409		Smoke Eliminator Vent Tube		Appelez-nous	-
2	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
3	31769301		Assy, Conv. Fan & Blade		Appelez-nous	-
4	31877301CG		Oven Shell, Upper (cg)		Appelez-nous	-
5	WP74011278		Assy, Oven Light   (Replaces: Y0314842)				$ 101.56
7	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
8	WPY0314907		Sensor, Temperature   (Replaces: Y0314907)				$ 201.45
9	Y0058526		Smoke Eliminator		Appelez-nous	-
10	Y0041017		Bracket, Oven Mounting-pyro		Appelez-nous	-
11	0307037		Nut, Lt Hand Thread		Appelez-nous	-
12	0307038		Washer (zn)		Appelez-nous	-
13	Y0305245		Element, Conv Oven(240v-2200w)		Appelez-nous	-
14	Y0307036		Blade, Fan		Appelez-nous	-
15	31843201CG		Cover, Fan (cg)		Appelez-nous	-
16	Y0306503		Reflector, Broil Element		Appelez-nous	-
17	Y0042138		Element, Broil (240v-2800w)		Appelez-nous	-
18	Y0040902		Broil Element Support Pyro		Appelez-nous	-
19	WP77001092		Element, Bake (240v-2800w)   (Replaces: Y0042137)				$ 130.93
20	314782J		Rack, Oven 19 3/16`` X 14 3/4``		Appelez-nous	-
21	314781J		Rack, Oven 19 3/16`` X 14 3/4``		Appelez-nous	-
22	Y0306531		Rack, Broiler		Appelez-nous	-
23	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
24	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
25	Y0042713		Meat Rack Slo/cook		Appelez-nous	-
NI	Y0042175		Bulb, Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
