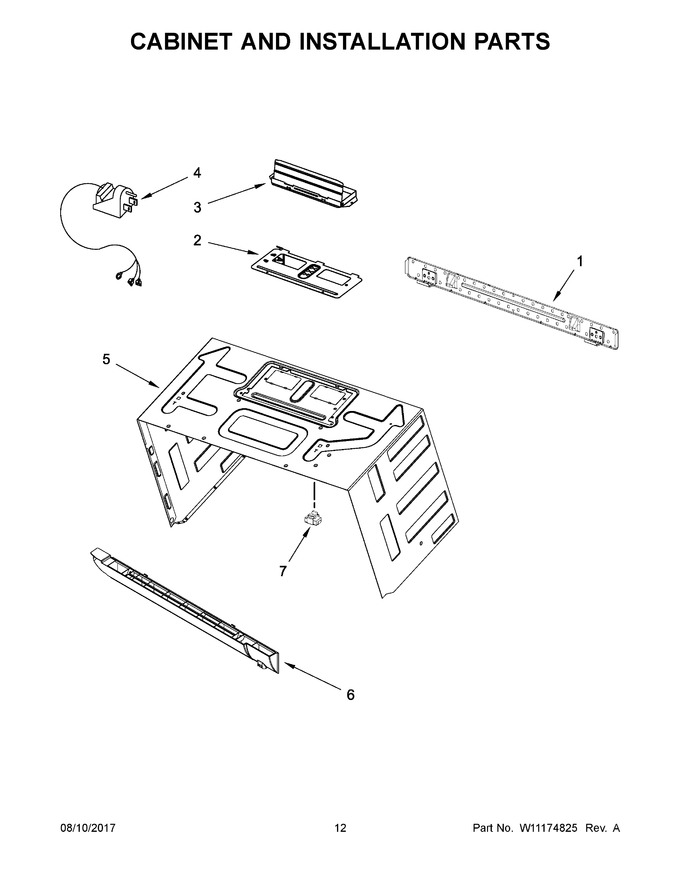

01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | W10625423 | Cover, Fan Motor |
|
$ 69.87 | |||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power |
|
$ 18.48 | |||||
| 5 | W11446920 | Case, Outer (white) (Replaces: W10571409) |
|
$ 225.68 | |||||
| 6 | W10701696 | Grille, Vent (white) |
|
$ 70.77 | |||||
| 7 | W10596040 | Assembly, Mounting Nut |
|
Immediately | $ 8.30 | ||||
| 5A | W10818229 | Case, Outer (black) (Replaces: W10571408) |
|
$ 228.66 | |||||
| 6A | W10701697 | Grille, Vent (black) |
|
$ 59.88 | |||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 88.90 | ||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 6.47 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 | |||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10917688 | Miscellaneous Parts, Harness, Main |
|
$ 140.63 | |||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 21.50 | |||||
| NI | W10710692 | Miscellaneous Parts, Harness, Hood Lamp And Turntable Motor |
|
$ 33.23 |
