01 - Cover Sheet
02 - Control Panel Parts

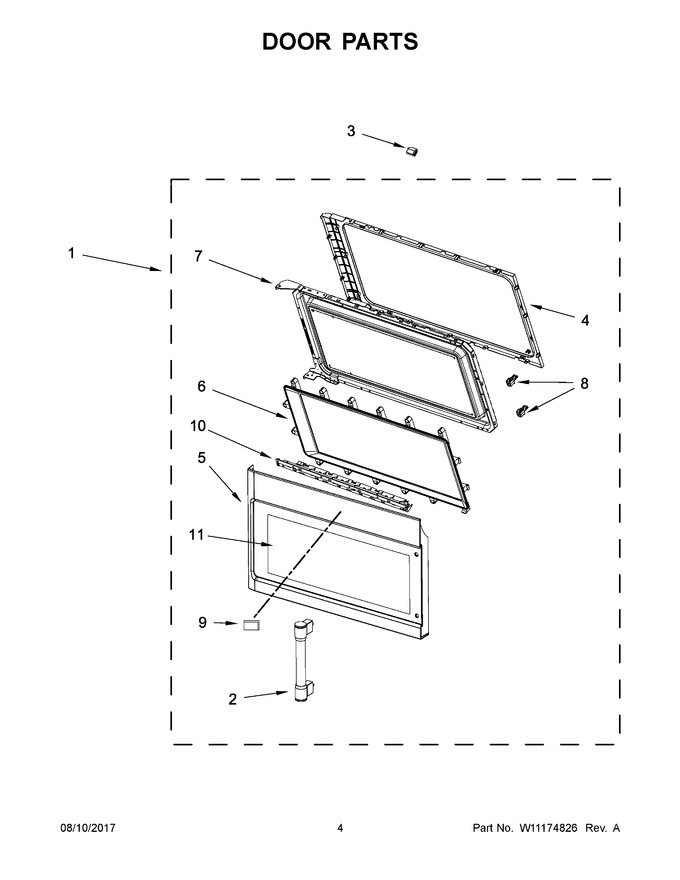

03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10893425 | Door, Complete (white) |
|
- | |||||
| 2 | W10887538 | Handle (white) |
|
- | |||||
| 3 | W10643974 | Stopper, Door |
|
$ 19.41 | |||||
| 4 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 5 | W11207467 | Assembly, Door Frame (white) (Replaces: W10888477) |
|
$ 198.44 | |||||
| 6 | W10514243 | Plate, Steam Protection |
|
$ 67.77 | |||||
| 7 | W10893422 | Foil, Door |
|
$ 228.24 | |||||
| 8 | W10740455 | Hooks, Door (Replaces: W10489272) |
|
Immediately | $ 48.17 | ||||
| 9 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 10 | W10589124 | Trim, Door (white) |
|
$ 64.01 | |||||
| 11 | WPW10578513 | Assembly, Door Glass (white) (Replaces: W10578513) |
|
$ 127.77 | |||||
| 10A | W10560421 | Trim, Door (black) |
|
- | |||||
| 11A | WPW10544436 | Assembly, Door Glass (black) (Replaces: W10544436) |
|
$ 109.75 | |||||
| 11B | WPW10578515 | Assembly, Door Glass (stainless) (Replaces: W10578515) |
|
$ 124.22 | |||||
| 1A | W10893423 | Door, Complete (black) |
|
- | |||||
| 1B | W10893427 | Door, Complete (stainless) |
|
- | |||||
| 1C | W10893424 | Door, Complete (white Ice) |
|
- | |||||
| 1D | W10893428 | Door, Complete (black Ice) |
|
- | |||||
| 2A | W10887539 | Handle (black) |
|
- | |||||
| 2B | W11034246 | Handle (stainless & Black Ice Models) (Replaces: W10887533) |
|
- | |||||
| 2C | W11034247 | Handle (white Ice) (Replaces: W10887540) |
|
- | |||||
| 5A | W11207468 | Assembly, Door Frame (black) (Replaces: W10888476) |
|
$ 104.96 | |||||
| 5B | W10888484 | Assembly, Door Frame (stainless) |
|
- |
