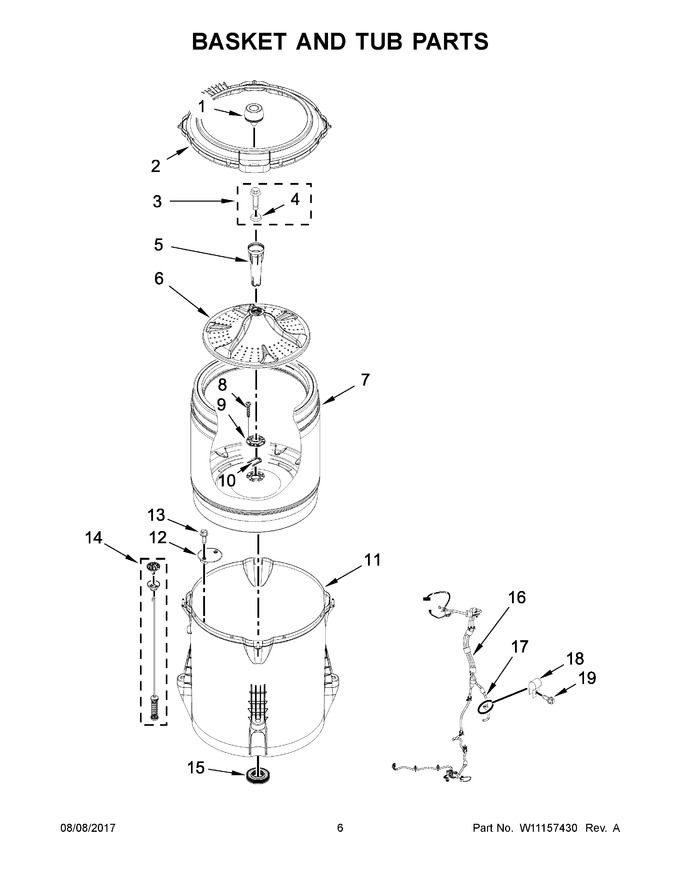

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11205050 | Dispenser, Fabric Softener (Replaces: W10863013) |
|
Immediately | $ 77.25 | ||||
| 2 | WPW10556325 | Tub Ring (Replaces: W10556325) |
|
Immediately | $ 204.15 | ||||
| 3 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 6.15 | ||||
| 4 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.63 | ||||
| 5 | W10836692 | Barrel, Agitator (Replaces: W10680220) |
|
Immediately | $ 146.11 | ||||
| 6 | W10846191 | Impeller (washplate) (Replaces: W10680217) |
|
Immediately | $ 298.31 | ||||
| 7 | W10521298 | Basket Assembly |
|
$ 486.01 | |||||
| 8 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 7.55 | ||||
| 9 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 44.62 | ||||
| 10 | W11385424 | Retainer, Drive Block (Replaces: W10402178) |
|
Immediately | $ 12.97 | ||||
| 11 | W10324648 | Tub (Replaces: W10238301) |
|
$ 361.85 | |||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 65.26 | |||||
| 13 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 14 | W11682068 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821954) |
|
Immediately | $ 92.25 | ||||
| 15 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 98.18 | ||||
| 16 | W10903242 | Harness, Lower (Replaces: W10736241) |
|
$ 186.53 | |||||
| 17 | WP353244 | Hose, Pressure Switch (Replaces: W10236981) |
|
Immediately | $ 86.67 | ||||
| 18 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 | ||||
| 19 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 |
