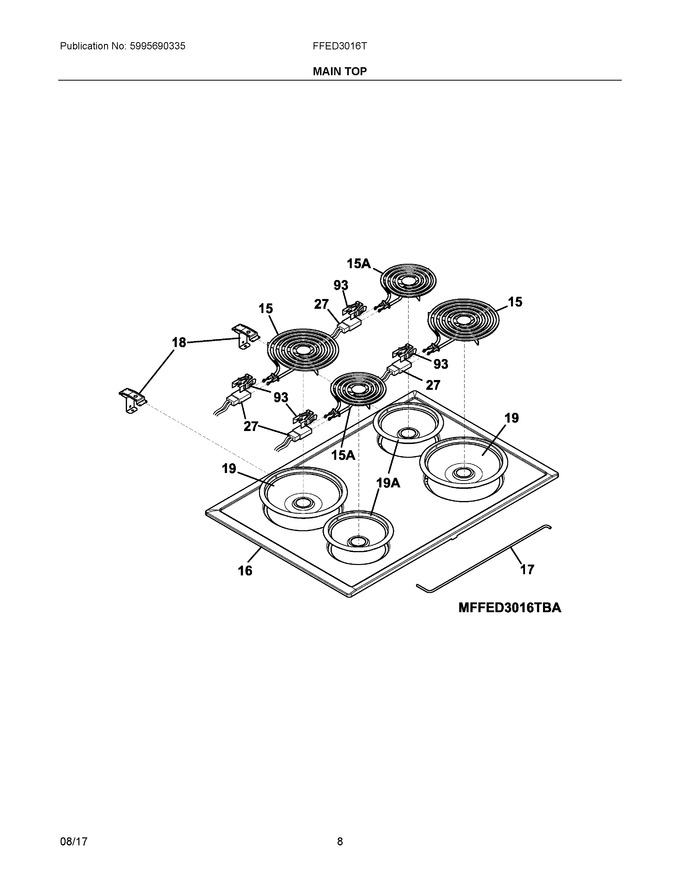

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	316442301		Element, Surface, 8", Large   (Replaces: 318372214)			Immediately	$ 44.39
16	318225606		Main Top, Black				$ 271.45
17	3051554		Rod, Support, Main Top Panel		Appelez-nous	-
18	318227710		Hinge, Maintop, (2)		Appelez-nous	-
19	316048413		Pan-surface Element, Chrome, Large/8 Inch			Immediately	$ 9.85
27	5304503375		Harness Assembly, Complete, Top Elements		Appelez-nous	-
93	318366410		Support, Terminal Block, (4)				$ 13.47
15A	318372211		Element, Surface, 6", Small			Immediately	$ 45.14
19A	316048414		Pan-surface Element, Chrome, Small/6 Inch			Immediately	$ 16.11
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	318532147		Ground Wire, W/terminal		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
