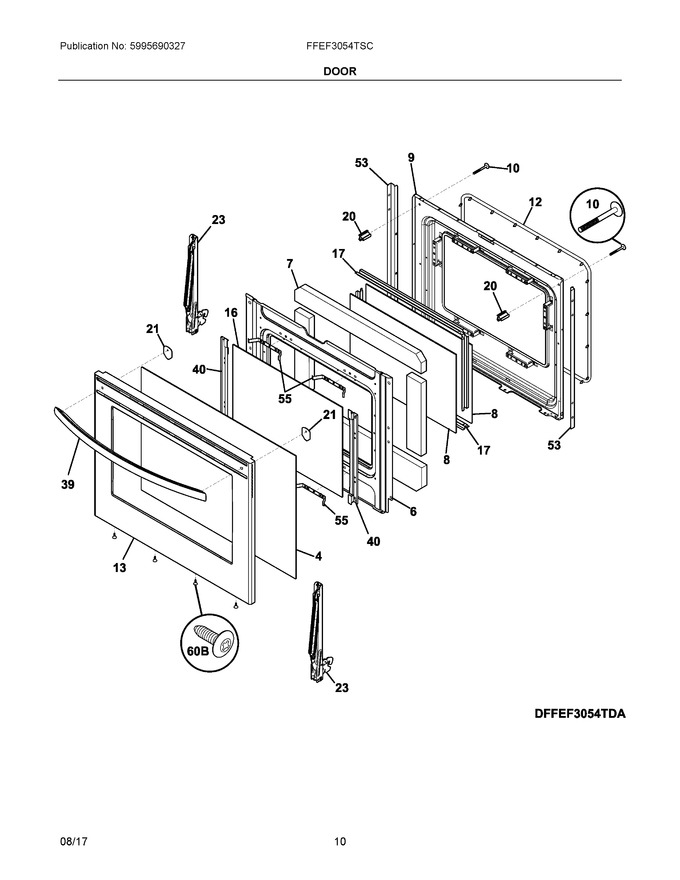

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452758		Glass, Oven Door, Black, W/foil			Immediately	$ 213.87
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 147.12
10	316433303		Screw, Handle Mtg., 10-24 X 1.75", (2)   (Replaces: 316439500)			Immediately	$ 31.17
12	316405000		Seal, Oven Door			Immediately	$ 179.17
13	5304532514		Panel, Oven Door, Stainless, Outer   (Replaces: 316603902)			Immediately	$ 138.75
16	316552800		Glass, Door, Airwash				$ 93.87
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316284100		Spacer, Door Handle, (2)				$ 14.89
21	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	316575911		Hinge, Oven Door, Brown				$ 103.14
39	140067504096		Handle, Door, Stainless   (Replaces: 5304507752)				$ 53.48
40	316552401		Bracket, Airwash Glass, (2)				$ 28.83
53	5304532042		Shield, Door Filler, Black, (2)   (Replaces: 316408201)				$ 25.79
55	316408300		Bracket, Glass Support, (4)				$ 21.23
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
