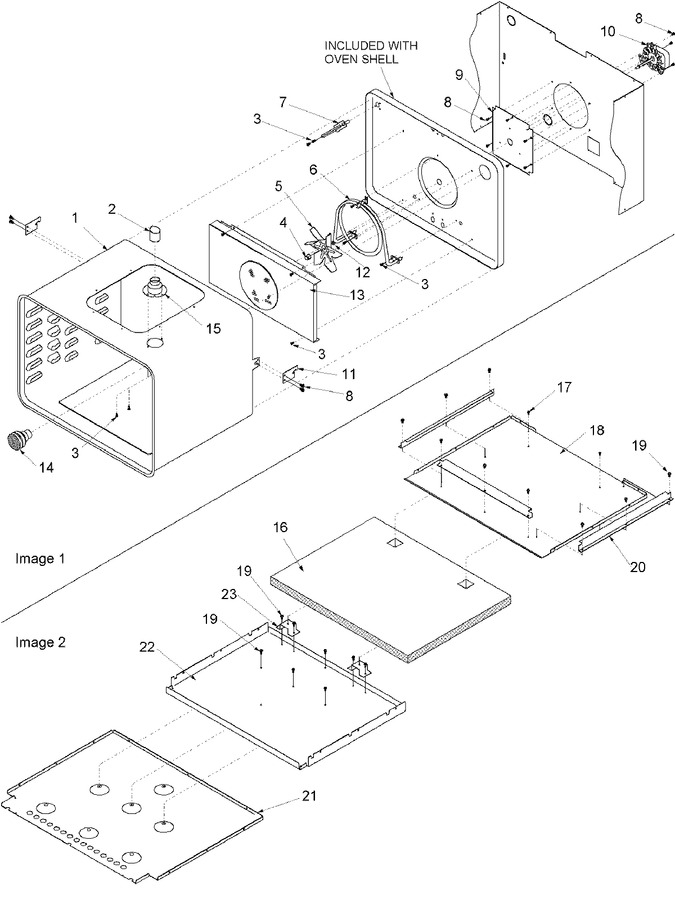

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31747201CG		Oven Shell (cg)		Appelez-nous	-
2	31732901		Tube, Vent		Appelez-nous	-
3	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
4	0307037		Nut, Lt Hand Thread		Appelez-nous	-
5	Y0307036		Blade, Fan		Appelez-nous	-
6	Y0305245		Element, Conv Oven(240v-2200w)		Appelez-nous	-
7	31968201		Sensor, Temperature				$ 106.76
8	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
9	31784401		Bracket,convection Motor Mtg		Appelez-nous	-
10	Y0307035		Fan Assy, Convection (w/blade)		Appelez-nous	-
11	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
12	0307038		Washer (zn)		Appelez-nous	-
13	31843201CG		Cover, Fan (cg)		Appelez-nous	-
14	Y0042175		Bulb, Light		Appelez-nous	-
14	WP74011278		Assy, Oven Light   (Replaces: Y0314842)				$ 101.56
15	31769301		Assy, Conv. Fan & Blade		Appelez-nous	-
15	Y0058526		Smoke Eliminator		Appelez-nous	-
16	0315448		Insulation, Bottom		Appelez-nous	-
17	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
18	Y0317007		Panel, Element		Appelez-nous	-
19	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
20	Y0316897		Spacer-bake Element		Appelez-nous	-
21	Y0315480		Shield, Outer Cabinet Bottom		Appelez-nous	-
22	0317006		Retainer, Bottom Insulation		Appelez-nous	-
23	Y0316998		Brkt, Support		Appelez-nous	-
