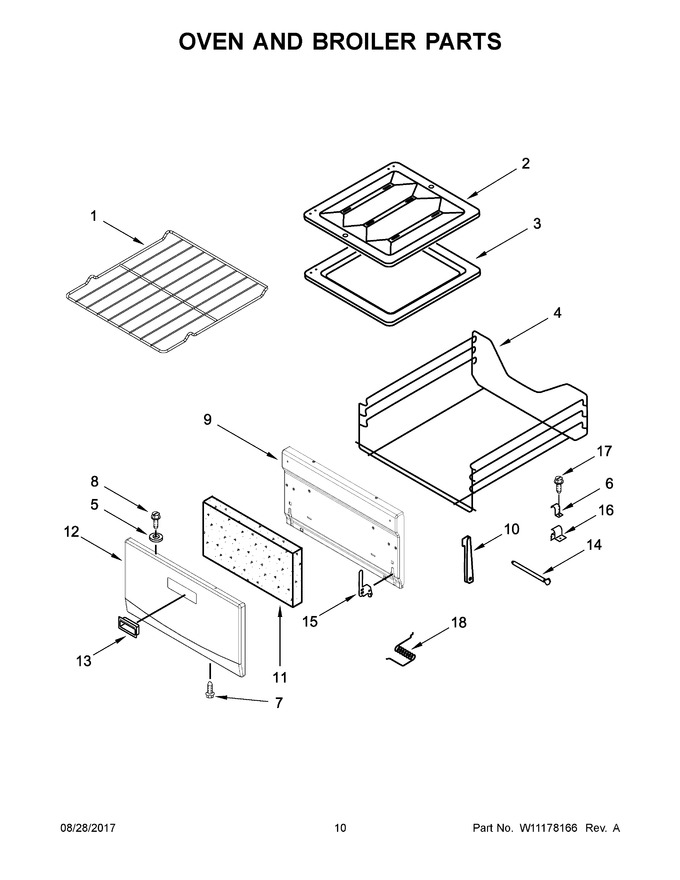

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11223841		Rack, Oven   (Replaces: 98016942)				$ 95.09
2	WP98003480		Grill, Broiler   (Replaces: 98003480)				$ 89.69
3	WP98016005		Pan, Broiler   (Replaces: 98016005)				$ 77.97
4	98016570		Rack, Broiler		Appelez-nous	-
5	W10216805		Washer		Appelez-nous	-
6	98004715		Guide, Rack		Appelez-nous	-
7	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
8	WP98008544		Screw (white)   (Replaces: 98008544)				$ 11.89
9	98004700		Liner, Door		Appelez-nous	-
10	98003791		Support, Hinge		Appelez-nous	-
11	W11688784		Insulation, Door   (Replaces: W10137224)		Appelez-nous	-
12	98017156W		Panel, Door (white)		Appelez-nous	-
13	WP3405184		Handle, Broiler Door (white)   (Replaces: 98008486)				$ 68.41
14	98004053		Pin, Hinge		Appelez-nous	-
15	W11499074		Hanger, Brlr Door   (Replaces: 98003790)		Appelez-nous	-
16	98008341		Cover, Guide		Appelez-nous	-
17	W10837731		Screw   (Replaces: 98006633)				$ 7.07
18	98009248		Spring, Broiler (right Hand)		Appelez-nous	-
18A	98009249		Spring, Broiler (left Hand)		Appelez-nous	-
