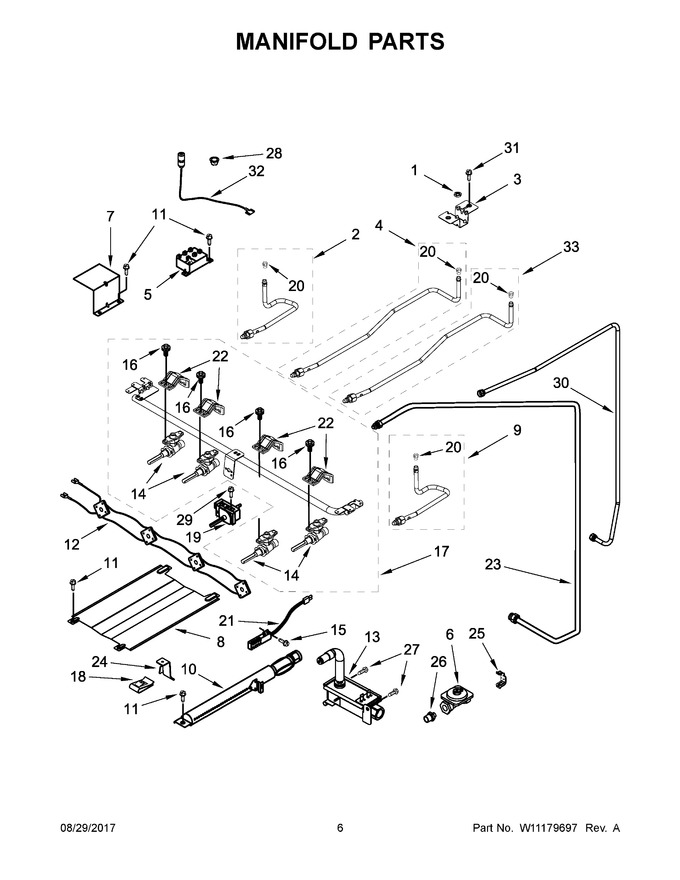

04 - Manifold Parts


05 - Chassis Parts


06 - Oven And Broiler Parts


07 - Oven Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10610297		Nut		Appelez-nous	-
2	WP98017582		Tubing, Gas (left Front)   (Replaces: 98017582)				$ 152.39
3	W11715913		Bracket, Surface Burner   (Replaces: W10122103)		Appelez-nous	-
4	WP98017359		Tubing, Gas (right Rear)   (Replaces: 98017359)				$ 166.58
5	W11590249		Module, Spark   (Replaces: 6610341)				$ 21.01
6	W10177394		Regulator				$ 272.72
7	98010823		Cover, Module		Appelez-nous	-
8	W10212101		Spreader, Flame				$ 68.22
9	W11661107		Tubing, Gas (right Front)   (Replaces: W10110343)				$ 113.50
10	WP98012138		Burner, Oven   (Replaces: 98012138)				$ 200.93
11	W10837731		Screw   (Replaces: W10493726)				$ 7.07
12	W10361496		Harness, Switch		Appelez-nous	-
13	WPW10205816		Valve, Oven   (Replaces: W10205816)				$ 325.18
14	WPW10141709		Valve, Saddle   (Replaces: W10141709)			Immediately	$ 207.32
15	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
16	98017517		Screw		Appelez-nous	-
17	W10592524		Manifold Assembly		Appelez-nous	-
18	98009179		U-nut				$ 12.02
19	W11673272		Thermostat, Oven   (Replaces: W10565875)				$ 113.69
20	WP98017348		Orifice, Natural (9.5k) (left Front And Right Rear)   (Replaces: 98017348)				$ 78.85
21	W11176454		Igniter, Hot Surface   (Replaces: W10914411)			Immediately	$ 130.83
22	98017516		Saddle, Bracket				$ 80.17
23	W10177392		Tubing (regulator To Oven Valve)		Appelez-nous	-
24	98013314		Locator, Burner		Appelez-nous	-
25	98007410		Bracket, Regulator		Appelez-nous	-
26	98007431		Fitting (3/8" To 9/16")				$ 110.58
27	98013634		Screw		Appelez-nous	-
28	WPW10278150		Clip, Ignitor   (Replaces: W10278150)				$ 40.61
29	WP98008545		Screw (black)   (Replaces: 98008545)				$ 15.94
30	WP98017171		Tubing (manifold To Regulator)   (Replaces: 98017171)				$ 233.12
31	W10837674		Screw   (Replaces: W10146346)				$ 6.90
32	WPW10209656		Ignitor, Top (black)   (Replaces: W10209656)			Immediately	$ 73.07
33	WPW10110342		Tubing, Gas (left Rear)   (Replaces: W10110342)				$ 165.52
20A	WP98017587		Orifice, Natural (7.5k) (right Front And Left Rear)   (Replaces: 98017587)				$ 80.62
32A	WPW10209657		Ignitor, Top (natural)   (Replaces: W10209657)				$ 48.56
NI	W11672513		Lp Spud Kit (for Use With Lp)   (Replaces: W10207842)				$ 19.16
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
