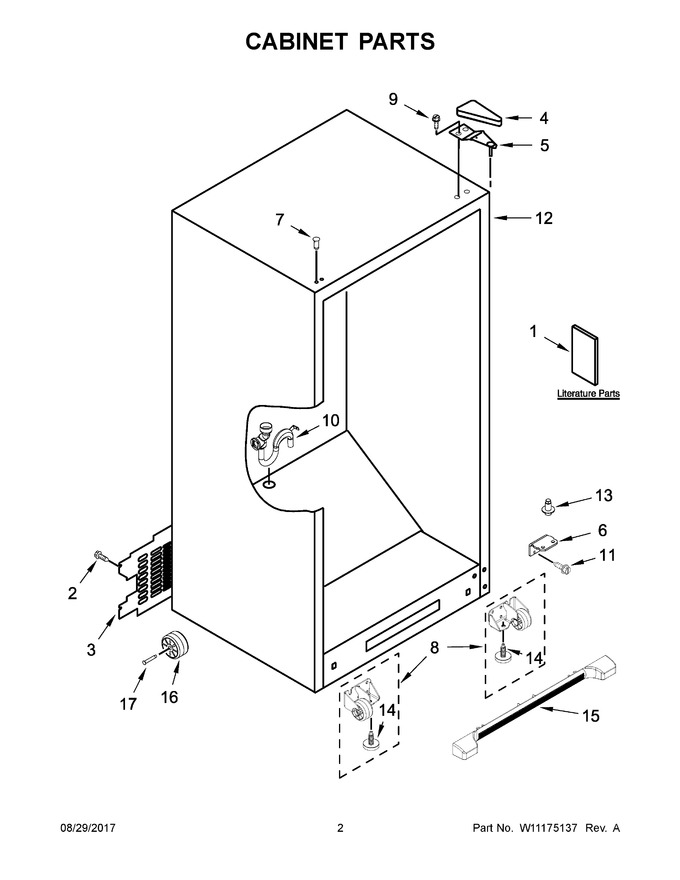

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10668409 | Use & Care Guide |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 3-80675-105) |
|
$ 6.98 | |||||
| 3 | W10574323 | Cover, Unit |
|
$ 79.88 | |||||
| 4 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 17.31 | |||||
| 5 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 6 | W10574264 | Hinge Plate, Bottom (white) |
|
$ 141.96 | |||||
| 7 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 8 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 32.01 | ||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 10 | W11673435 | Drain Tube (Replaces: W10717194) |
|
Immediately | $ 43.70 | ||||
| 11 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 6.92 | ||||
| 12 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 13 | W11676609 | Hinge Pin, Lower (Replaces: W10574325) |
|
$ 12.76 | |||||
| 14 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.07 | ||||
| 15 | WPW10534166 | Grill, Front (white) (Replaces: W10534166) |
|
Immediately | $ 68.95 | ||||
| 16 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 17 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 1A | W11115736 | Energy Guide |
|
- | |||||
| 1B | W10653921 | Tech Sheet |
|
- | |||||
| 8A | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 32.01 |
