01 - Cover Sheet


02 - Oven, Cabinet

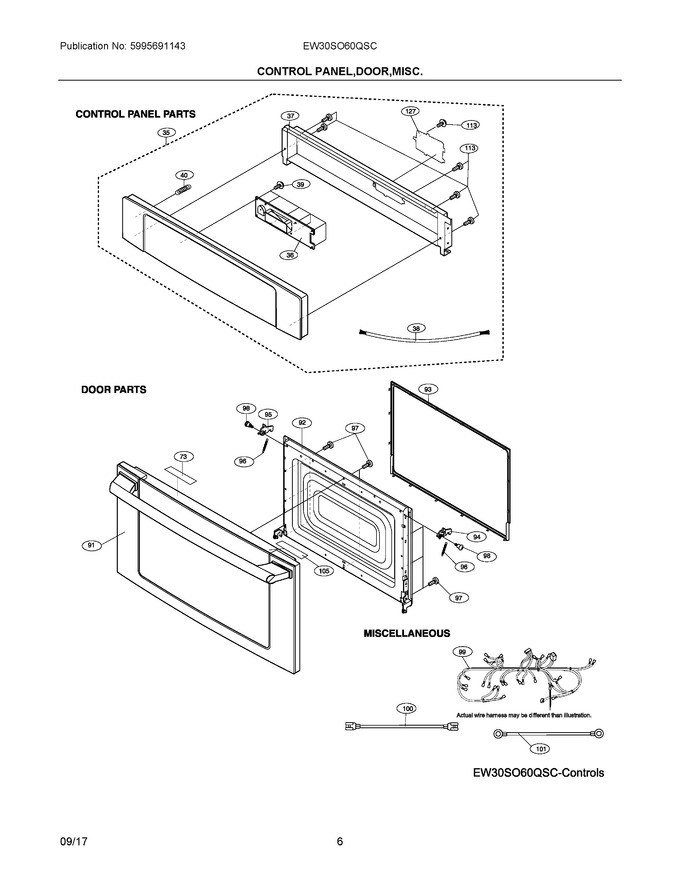

03 - Control Panel, Door, Misc.


04 - Wiring Schematic


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	5304513272		Touch Control Assy, Key Pad				$ 1,551.80
36	5304513290		Display Board, Cpu				$ 292.24
37	5304513486		Bracket, Control Mount		Appelez-nous	-
38	5304507180		Wiring Harness, Power Supply		Appelez-nous	-
39	5304458568		Screw, 3 Mm X 10 Mm		Appelez-nous	-
40	5304470560		Spring, Grounding				$ 15.08
73	5304440346		Label, User Caution				$ 34.73
91	5304498743		Frame, Outer Door, With Handle				$ 1,166.60
92	5304471512		Panel, Inner Door				$ 357.92
93	5304470579		Frame, Inner Door, Choke Cover				$ 87.48
94	5304491054		Latch Head, Right Side				$ 54.58
95	5304490142		Latch Head, Left Side			Immediately	$ 58.56
96	5304501834		Spring, Latch Head				$ 41.11
97	5304451561		Screw, 4 Mm X 8 Mm				$ 16.63
98	5304470583		Screw				$ 13.01
99	5304507164		Wiring Harness, Main		Appelez-nous	-
100	5304440331		Wire, High Voltage-a		Appelez-nous	-
101	5304461199		Wire, Ground, Cooling Fan				$ 25.52
105	5304451534		Label, User Caution, French				$ 3.55
113	5304451553		Screw, 4 Mm X 12 Mm				$ 14.89
127	5304498746		Plate, Control Panel, Rear Cover		Appelez-nous	-
