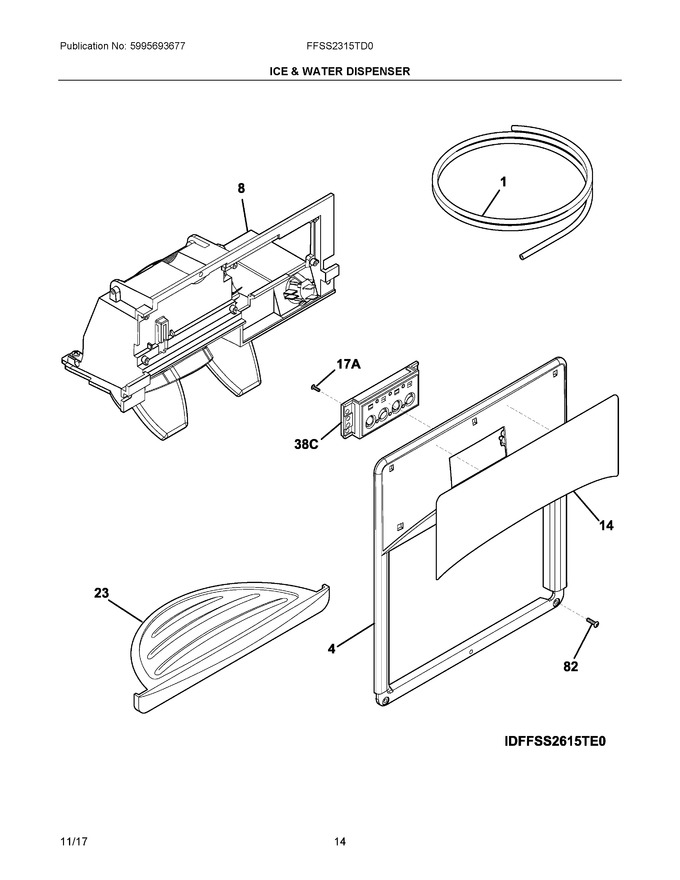

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976438		Tube, Water, 62", Natural, Door			Immediately	$ 20.56
4	241679010		Fa?ade, Dispenser, Black Stainless		Appelez-nous	-
8	240563636		Ice & Water Module		Appelez-nous	-
14	240570238		Label, Fa?ade, Black Stainless		Appelez-nous	-
23	241649008		Drip Tray, Black Stainless		Appelez-nous	-
82	5304453707		Screw, Plask, #8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
101	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
17A	5304433185		Screw, Switch Mtg.		Appelez-nous	-
38C	5304525097		Switch   (Replaces: 241679101)				$ 103.90
NI	5303918596		Dispenser Heater Kit, 115, Single Paddle   (Replaces: 5303918371)				$ 317.38
NIA	218976439		Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door				$ 19.13
NICA	241873301		Harness-wiring   (Replaces: 241686001)				$ 11.15
