SELECT A DIAGRAM

01 - Cover Sheet

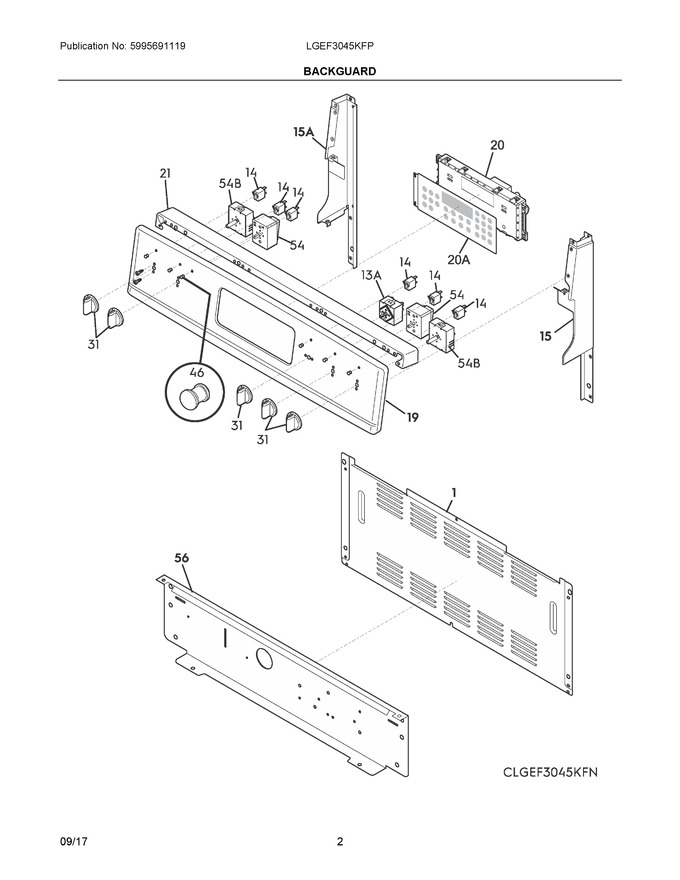

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316546710		Cap, Backguard, Black, Rh End				$ 98.52
19	316572418		Panel, Backguard, Stainless				$ 264.02
20	5304495520		Controller, Electronic, Es540   (Replaces: 316560105)			Immediately	$ 433.93
21	316546605		Cap, Backguard, Black, Top				$ 66.91
31	316564407		Knob, Control, Stainless, (5)				$ 121.35
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 66.74
13A	5304508926		Switch, Infinite, Warmer			Immediately	$ 84.18
15A	316546711		Cap, Backguard, Black, Lh End				$ 43.20
20A	316419821		Overlay, Clock, Black, Es540			Immediately	$ 36.05
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
