View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

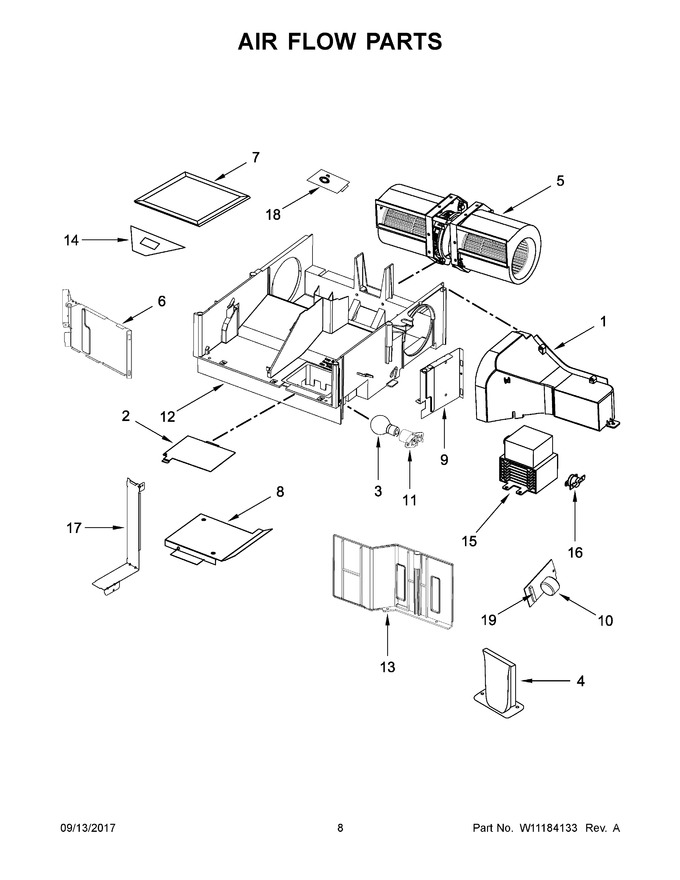

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 4 | W10770968 | Plate, Waterproof |
|
$ 55.59 | |||||
| 5 | W11441128 | Motor, Hood Fan (Replaces: W10825649) |
|
Immediately | $ 190.49 | ||||
| 6 | W10827799 | Plate, Air Guide Sealing |
|
- | |||||
| 7 | W10892387 | Filter, Charcoal (Replaces: W10845250) |
|
Immediately | $ 15.95 | ||||
| 8 | W10845672 | Guide, Air |
|
- | |||||
| 9 | W10828079 | Cover, Right Duct |
|
- | |||||
| 10 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 11 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 12 | W10828030 | Plate, Air Guide Base |
|
$ 91.72 | |||||
| 13 | W10342991 | Shield, Finger |
|
$ 145.57 | |||||
| 14 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 15 | WPW10693025 | Magnetron (Replaces: W10693025) |
|
Immediately | $ 166.55 | ||||
| 16 | W10832024 | Thermostat, Magnetron |
|
$ 77.93 | |||||
| 17 | W10828038 | Cover, Airguide Inlet |
|
- | |||||
| 18 | W11590866 | Sensor, Humidity (Replaces: W10833858) |
|
$ 60.67 | |||||
| 19 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 |
