SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts

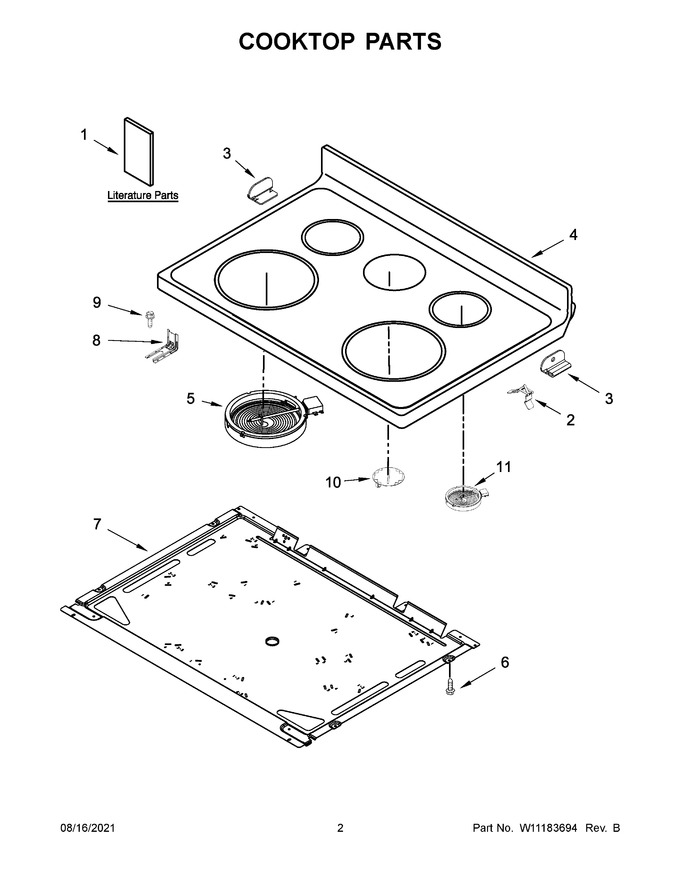

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11157404		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
3	W10607641		Bracket, Cooktop (left)				$ 28.73
4	W11183708		Cooktop (black)   (Replaces: W11034836)			Immediately	$ 652.29
5	W10823727		Element (3000w) (left Front)   (Replaces: W10711900)			Immediately	$ 293.68
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
8	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 113.96
11	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: W10248261)			Immediately	$ 164.01
11A	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
1A	W11102909		Use And Care Guide		Appelez-nous	-
1B	W11102747		Sheet, Tech		Appelez-nous	-
1C	W11109899		Wiring Diagram		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
4A	W11183715		Cooktop (white)   (Replaces: W11034832)			Immediately	$ 579.32
5A	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 121.00
NI	W10183541		Clip, Spring Steel		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	NP		Refrigerant Charge 5.75 Oz. (r-134a)		Appelez-nous	-
NI	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)				$ 34.00
NI	W11134592		Harness, Warm Zone				$ 100.51
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 23.16
NI	W11403690		Harness, Main   (Replaces: W11028536)				$ 188.60
NI	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 74.00

    View Diagram in Separate Window       Print Part List
