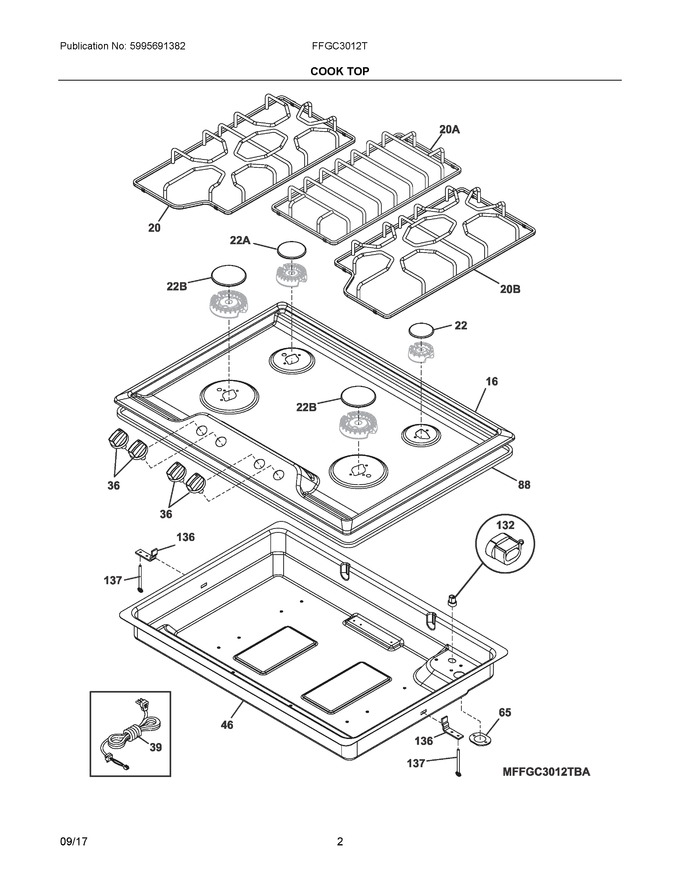

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5304513508		Main Top, Assembly, Black		Appelez-nous	-
20	5304513510		Grate, Burner, Black, Lh		Appelez-nous	-
22	5304508441		Cap, 5k Burner, Matte, Black			Immediately	$ 35.04
36	5304498807		Knob, Burner, Black		Appelez-nous	-
39	305574902		Power Cord, Electrical, Supply				$ 69.46
46	5304498809		Burner Box		Appelez-nous	-
65	5304506478		Seal, Rubber				$ 11.34
88	5304508434		Gasket, Main Top, 30		Appelez-nous	-
132	5304513507		Bushing, Strain Relief				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20A	5304513512		Grate, Burner, Black, Center		Appelez-nous	-
20B	5304513511		Grate, Burner, Black, Rh		Appelez-nous	-
22A	5304508442		Cap, 9.5k Burner, Matte, Black			Immediately	$ 36.55
22B	5304508443		Cap, 14k Burner, Matte, Black			Immediately	$ 46.01
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305424100		Tape, Aluminum		Appelez-nous	-
NIB	305338602		Screw		Appelez-nous	-
