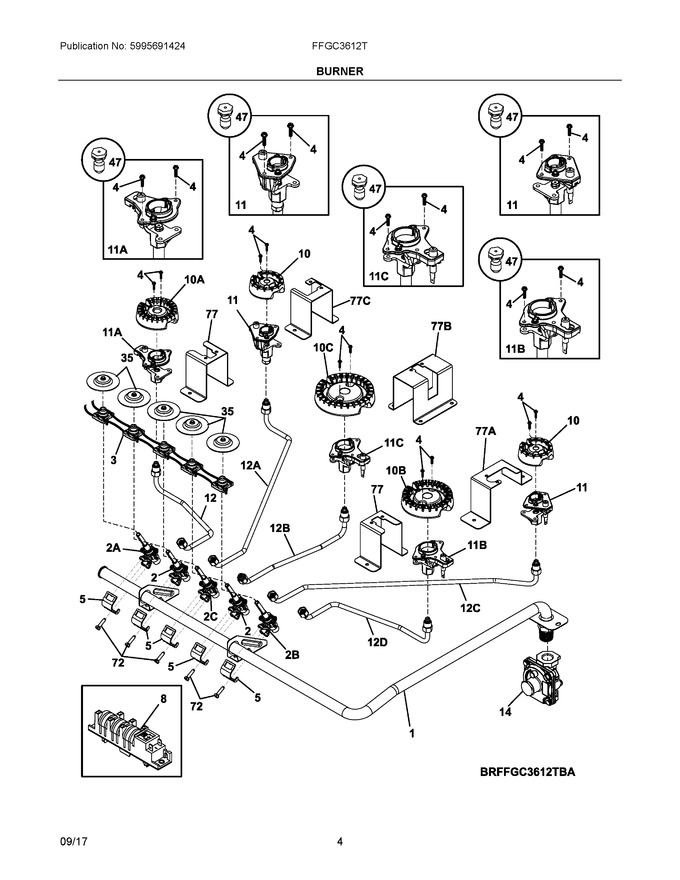

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505689		Manifold, Tube, 36", 5 Valve		Appelez-nous	-
2	5304505693		Valve, Saddle, 680 Btu, Orange Stem				$ 80.85
3	5304527828		Switch Assembly, Ignitor, W/harness   (Replaces: 305595115)			Immediately	$ 32.91
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
5	357733402		Bracket, Valve Fixing				$ 9.66
8	5304537114		Module, Spark, 6 Outputs   (Replaces: 5304505696)			Immediately	$ 47.88
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	5304498786		Ignitor/orifice Assy., Top Burner, 5k				$ 82.93
12	5304498881		Tube, Burner, Lh Front		Appelez-nous	-
14	5304519943		Regulator, Pressure   (Replaces: 318122727)				$ 129.93
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
47	5304513518		Lp Kit, Gas Conversion		Appelez-nous	-
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
77	5304498799		Bracket, Ignitor/orifice, Mounting				$ 18.43
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
11A	5304498787		Ignitor/orifice Assy., Top Burner, 9.5k				$ 119.83
11B	5304498788		Ignitor/orifice Assy., Top Burner, 12k				$ 134.19
11C	5304498815		Ignitor/orifice Assy., Top Burner, 17k		Appelez-nous	-
12A	5304498882		Tube, Burner, Lh Rear		Appelez-nous	-
12B	5304498883		Tube, Burner, Center		Appelez-nous	-
12C	5304498884		Tube, Burner, Rh Front		Appelez-nous	-
12D	5304498885		Tube, Burner, Rh Rear		Appelez-nous	-
2A	5304505690		Valve, Saddle, 850 Btu, Green Stem			Immediately	$ 69.77
2B	5304505691		Valve, Saddle, 1125 Btu, Blue Stem			Immediately	$ 69.01
2C	5304505692		Valve, Saddle, 1800 Btu, Red Stem				$ 71.29
77A	5304498800		Bracket, Ignitor/orifice, 5k Burner, Mounting		Appelez-nous	-
77B	5304498888		Bracket, Ignitor/orifice, Center Burner, Mounting				$ 19.85
77C	5304498889		Bracket, Ignitor/orifice, 5k Burner, Mounting		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NI	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
NIA	318199780		Wiring Harness, Ignitor				$ 100.56

    View Diagram in Separate Window       Print Part List
