SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

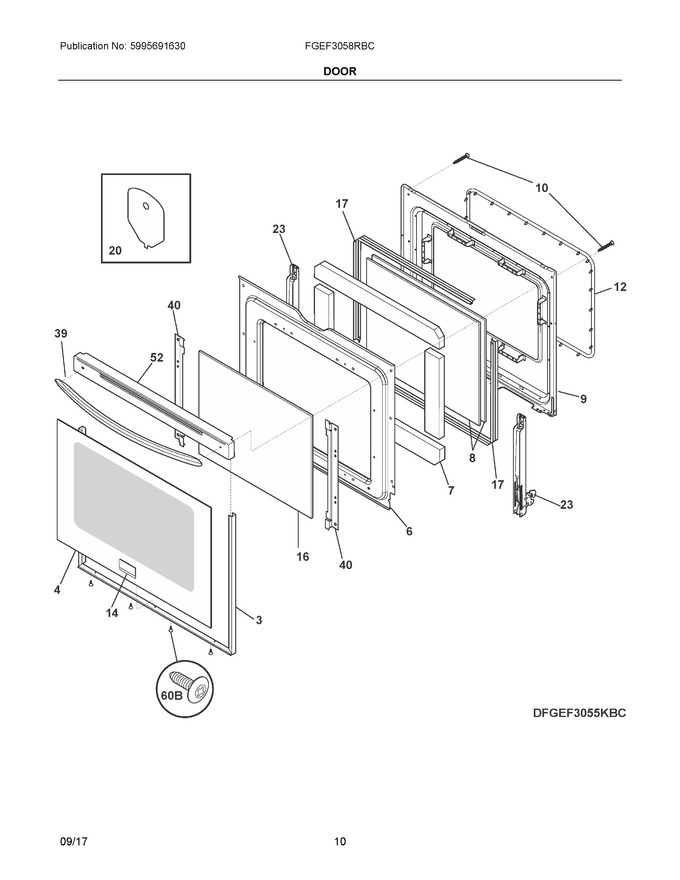

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 58.12
4	316559107		Glass Assembly, Outer, Black		Appelez-nous	-
6	316503800		Shield, Wool				$ 106.89
7	316513000		Insulation, Oven Door				$ 81.50
8	316502500		Glass, Door, Inner, (2)			Immediately	$ 115.65
9	316503620		Liner, Oven Door				$ 170.10
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
12	316405000		Seal, Oven Door			Immediately	$ 179.17
14	316572700		Nameplate				$ 81.50
16	316502601		Glass, Door, Airwash   (Replaces: 316502600)			Immediately	$ 207.85
17	5304503172		Spacer, Door Glass				$ 25.79
20	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	316575908		Hinge, Oven Door, Teal				$ 145.44
39	316554000		Handle, Door/drawer, Black				$ 191.94
40	316530403		Bracket-airwash Glass Wash				$ 33.18
52	316575501		Cap, Door Trim, Black				$ 110.73
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
