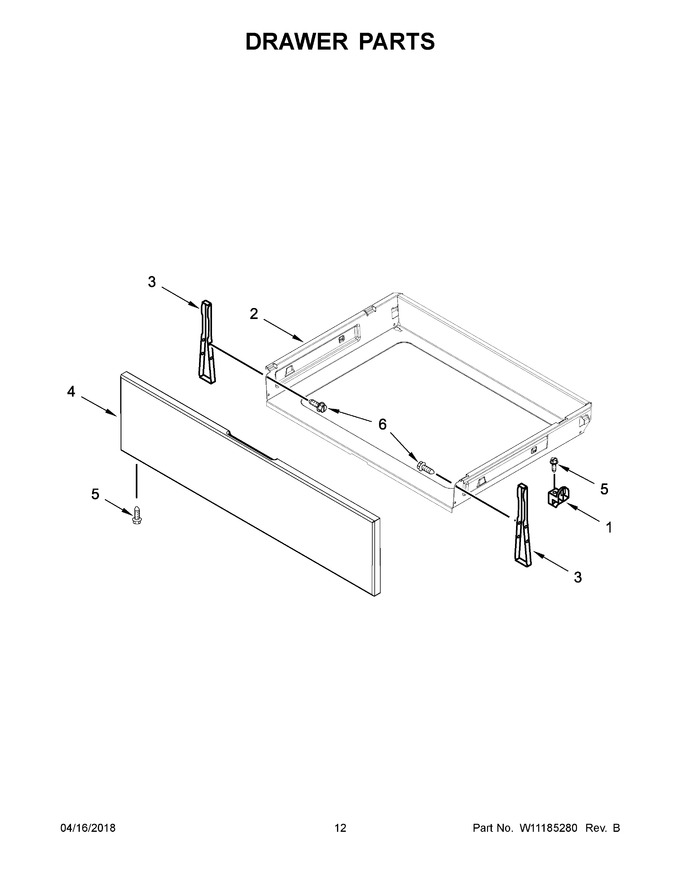

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 16.69 | ||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 124.34 | ||||
| 3 | W11759228 | Bracket, Mounting (Replaces: W10462909) |
|
$ 23.55 | |||||
| 4 | W11252164 | Panel, Drawer Front (stainless) (Replaces: W11190210) |
|
$ 185.25 | |||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 4A | W11045574 | Panel, Drawer Front (black Stainless) |
|
- |
