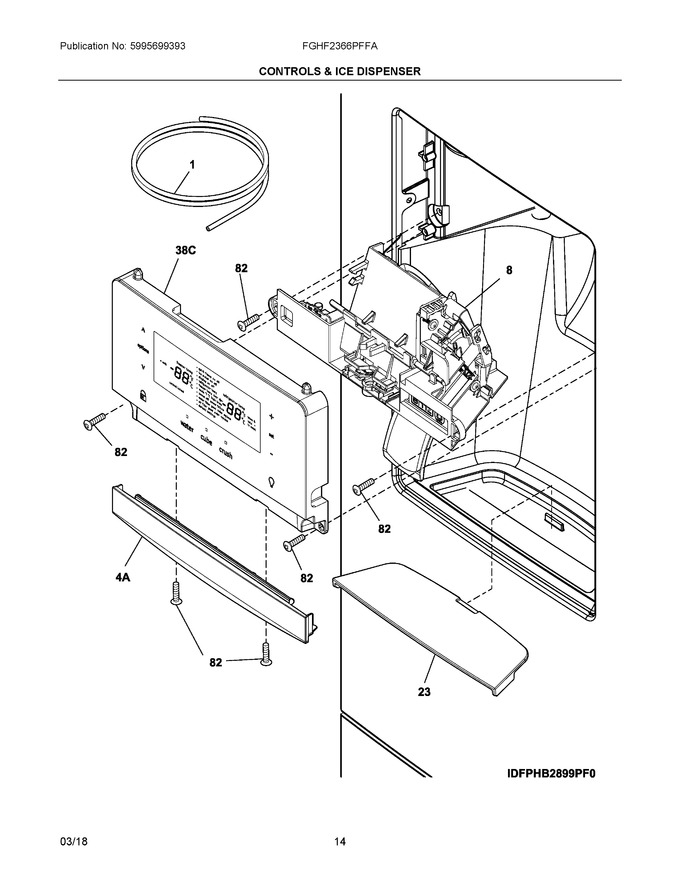

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water, 5/16-37", Yellow, Valve To, Back Connector |
|
$ 20.56 | |||||
| 8 | 242270106 | Module, Dispenser, Clear, W/paddle |
|
Immediately | $ 214.62 | ||||
| 23 | 242176503 | Sump, Dispenser, Grey |
|
$ 114.11 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 38C | 5304508115 | Control Assembly, User Interface, W/housing |
|
Immediately | $ 304.87 | ||||
| 4A | 242194301 | Trim, Facade, Stainless |
|
$ 103.29 | |||||
| NI | 5303918596 | Kit, Dispenser Heater, Ac |
|
$ 317.38 | |||||
| NI | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 51.22 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NI | 5304521784 | Harness-wiring, Door (Replaces: 242040804) |
|
$ 61.43 | |||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 30.47 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 218976437 | Tube-water Inlet, 5/16 - 59", Yellow, Cd |
|
- | |||||
| NIB | 241920106 | Tube-water, Ice Maker Fill, 5/16-54", Green, Back Connector, To Ff Ice Maker (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NIC | 241964707 | Tube-water, 1/4-36", Light Green, Valve To, Back Connector |
|
Immediately | $ 18.43 | ||||
| NICA | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| NID | 241965906 | Tube-water, 5/16-67", Natural, Dispenser To, Back Connector |
|
Immediately | $ 24.10 | ||||
| NIE | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- | |||||
| NIF | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
