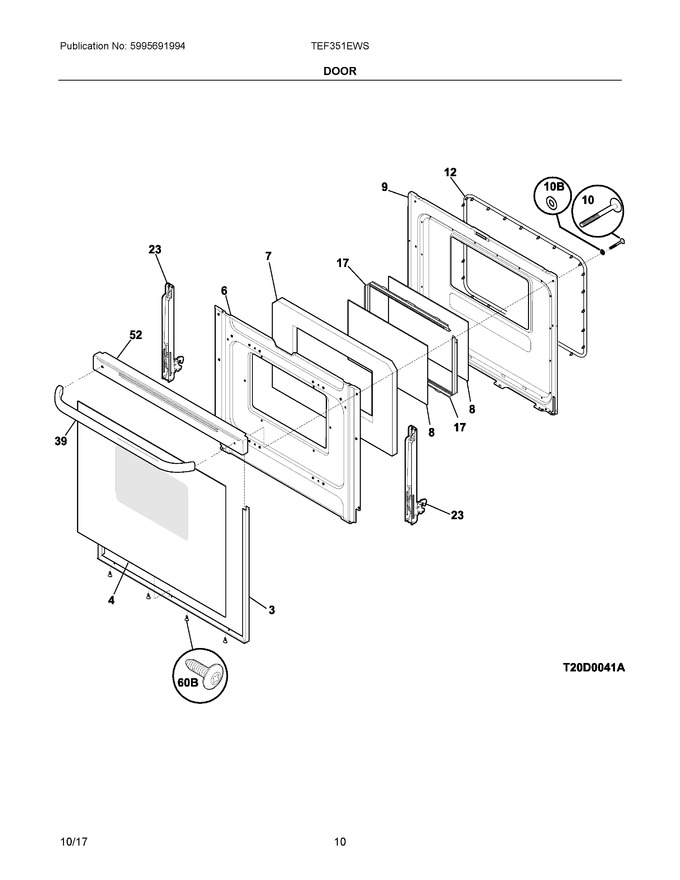

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 58.12
4	316406404		Glass, Oven Door, Black, Outer				$ 222.20
6	316406308		Shield, Wool				$ 100.17
7	316405601		Insulation, Oven Door				$ 84.68
8	316427701		Glass, Oven Door, Inner, (2)				$ 103.74
9	316423709		Liner, Oven Door				$ 157.06
10	316001009		Screw, Waf Hd Sq, 10-24 X 1.88, (2), Handle Mtg				$ 15.17
12	316405000		Seal, Oven Door			Immediately	$ 179.17
17	5304504066		Spacer, Glass				$ 35.45
23	316575903		Hinge, Oven Door, Blue				$ 89.99
39	5304529996		Handle, Oven Door, Black   (Replaces: 316456900)				$ 156.11
52	316575501		Cap, Door Trim, Black				$ 110.73
10B	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
