SELECT A DIAGRAM

01 - Door/control Panel


02 - Inner Cavity/blower/bake And Broil Assy


03 - Outer Cabinet/racks


04 - Oven Assy/bottom Insulation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

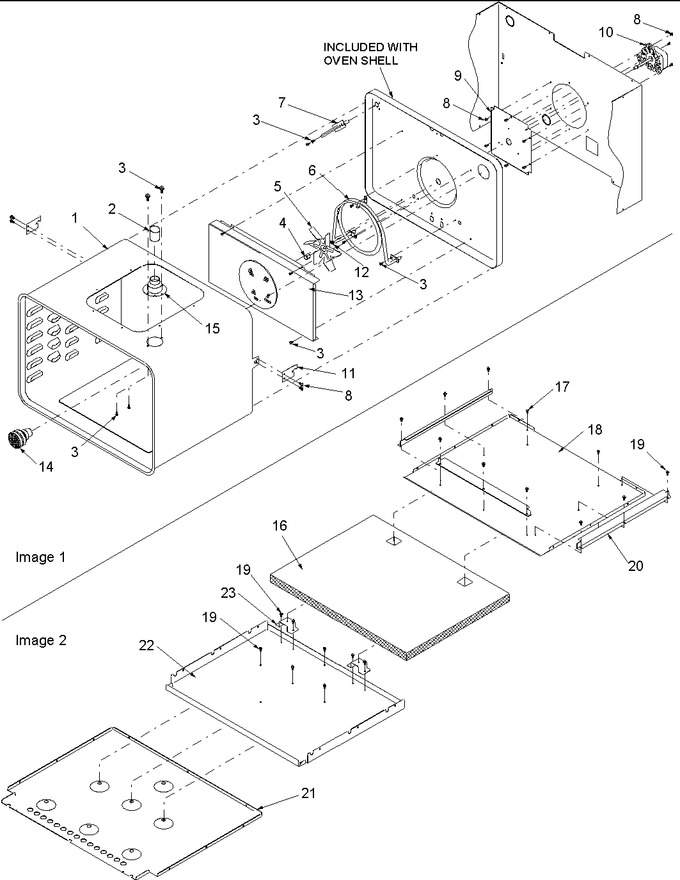

1	31747801CG		Oven Shell (cg)		Appelez-nous	-
2	31732901		Tube, Vent		Appelez-nous	-
3	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
7	WPY0314907		Sensor, Temperature   (Replaces: Y0314907)				$ 201.45
8	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
11	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
14	WP74011278		Assy, Oven Light   (Replaces: Y0314842)				$ 101.56
14	Y0042175		Bulb, Light		Appelez-nous	-
15	Y0058526		Smoke Eliminator		Appelez-nous	-
16	0315448		Insulation, Bottom		Appelez-nous	-
17	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
18	Y0317007		Panel, Element		Appelez-nous	-
19	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
20	Y0316897		Spacer-bake Element		Appelez-nous	-
21	Y0315480		Shield, Outer Cabinet Bottom		Appelez-nous	-
22	0317006		Retainer, Bottom Insulation		Appelez-nous	-
23	Y0316998		Brkt, Support		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
